Easy mode allows you to operate the analyzer with minimum setup. Use Easy Mode to get a comprehensive overview of your analyzer’s capabilities. Easy mode allows only Trigger and Data captures.
The Trigger and Filter settings panes has parameters for triggering on selected triggers and filtering in (including) or filtering out (excluding) selected patterns. The window opens with default settings to capture everything on the bus. The analyzer captures everything immediately without triggering on anything in particular.
Configure an Event Trigger using the settings from the Trigger Filter Setting Pane.
-

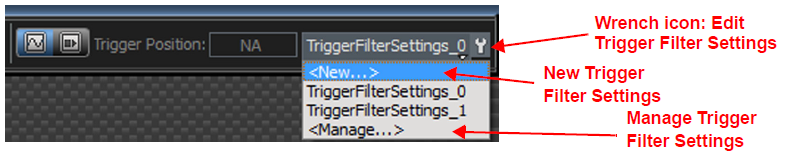

To create new trigger filter settings, click TriggerFilterSettings and select New from the drop-down menu. The Trigger Filter Settings window displays.
-
To set the when the Analyzer triggers, click Trigger/Filter
