The SierraNet T328 analyzer is Teledyne LeCroy’s SFP+ 10/25/40/50/100 Gigabit Ethernet and Gen6 Fibre Channel Analyzer platform. It has eight SFP+ ports. Up to 128 GB of capture memory allows for capturing extensive line-speed data. The SierraNet T328 employs Teledyne LeCroy’s T.A.P.3 non-intrusive probing technology, which enables complete protocol capture, fast signal locking, and very little loss and jitter. The analyzer can be controlled with either a one (1) Gigabit Ethernet connection to the local network, or a USB connection.
The SierraNet T328 provides the user with easy-to-understand control panel and LED indicators. Major features of the T328 include triggering on back-to-back events, use of counters within trigger conditions, and multi-state (up to 24) triggering and filtering state machines with four transitions per state and FlexPort, which allows concurrent Ethernet and FC analysis. The Net Protocol Suite software for controlling the analyzer and displaying the captured data installs on the latest Microsoft® Windows® version. See the ReadMe file for the latest information on host-machine requirements.

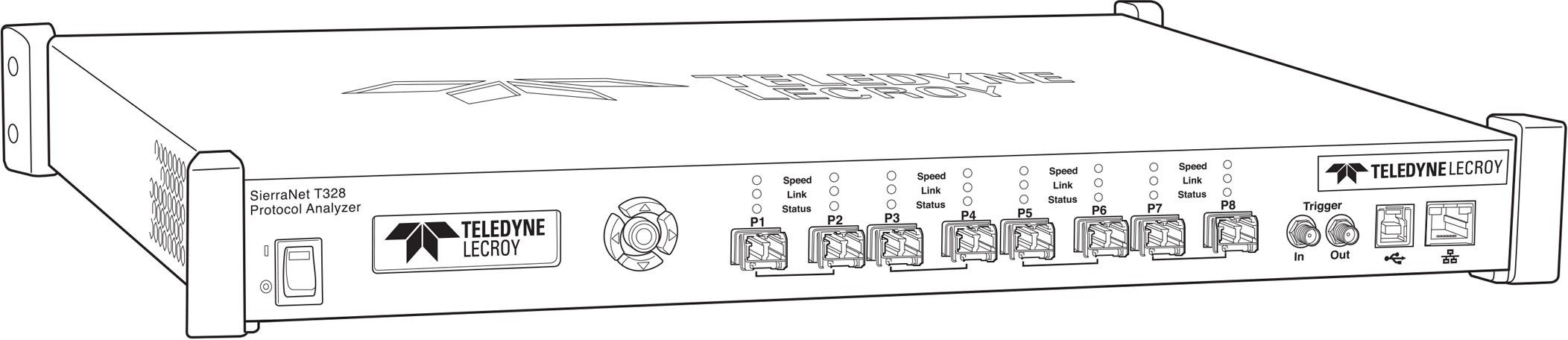

T328 Analyzer Front Panel

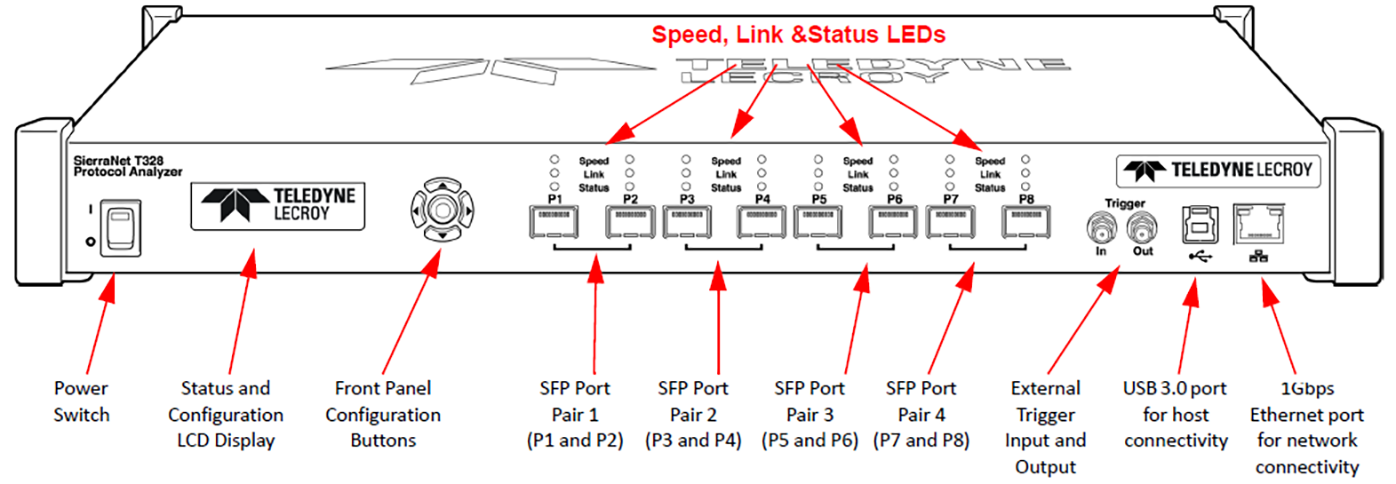

The T328 Analyzer has the following front panel features:
T328 LEDs

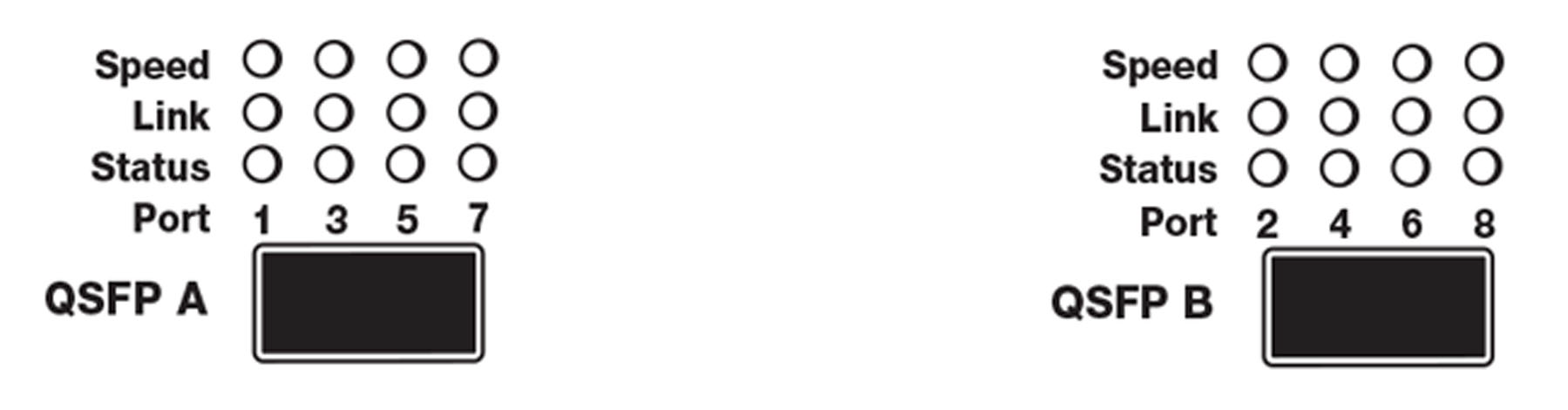

LEDs indicators support each port link pair (P1 - P2; P3 - P4; P5 - P6 and P7 - P8) with the following functionality.
|
T328 LEDs |
||
|---|---|---|
|
|
Ethernet |
Fibre Channel |
|
Speed LEDs |
||
|
Yellow |
|
|
|
Green |
|
|
|
Blue |
|
|
|
Link Activity LEDs |
||
|
Green |
|
|
|
Yellow |
|
|
|
No Color |
|
|
|
Status LEDs |
||
|
Yellow Blinking |
|
|
|
Yellow |
|
|
|
Red |
|
|
|
No Color |
|
|
T328 Analyzer Rear Panel

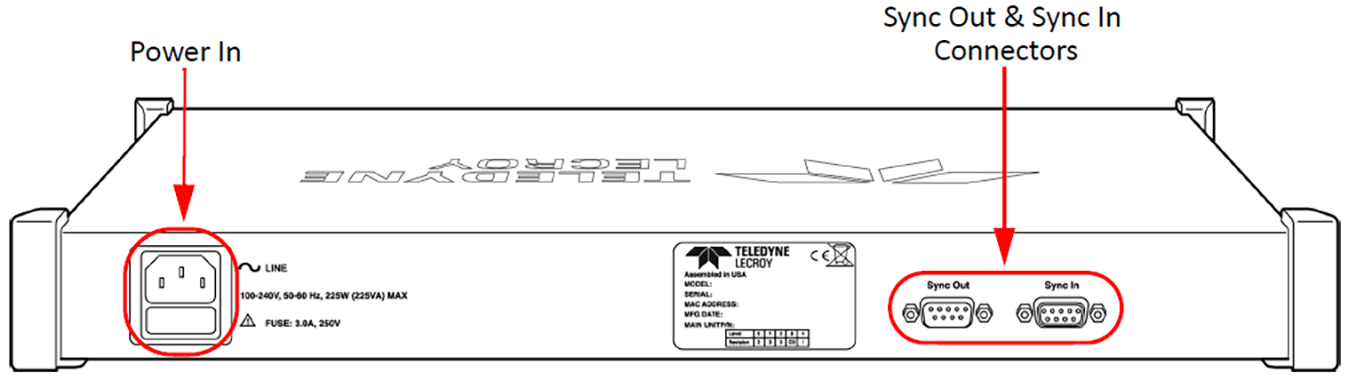

On the back, the T328 Analyzer has Power In and Sync Expansion Connectors.
