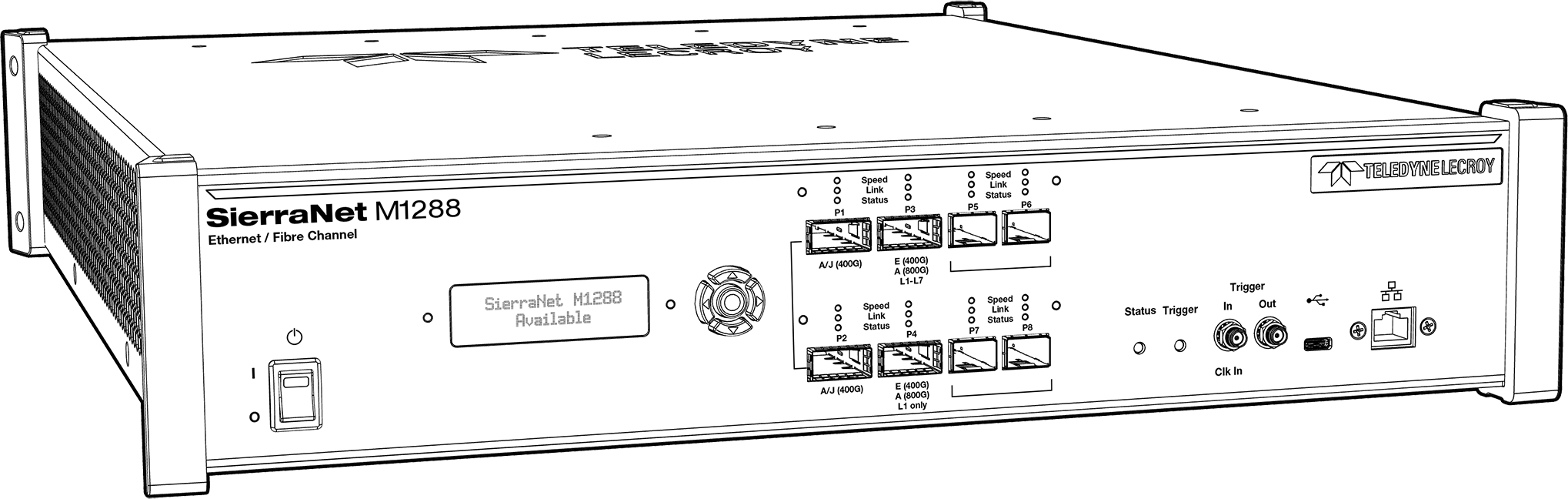

SierraNet M1288 Analyzer

The SierraNet M1288 analyzer is Teledyne LeCroy’s QSFP-DD 10/25/40/50/100/200/400/800G-L1/ 800* Gigabit Ethernet (*requires 2 SierraNet M1288 units) and Gen7 Fibre Channel Analyzer platform (via the SFP112 connections). It has:

• two (2) Digitally Retimed QSFP-DD ports (P1, P2),

• two (2) Analysis-only ports (P3, P4, require the M1288 Probe, sold separately), and

• four (4) SFP112 ports.

Up to 128 GB of capture memory allows for capturing of extensive line-speed data. The SierraNet M1288 Probe employs Teledyne LeCroy’s T.A.P.6 non-intrusive probing technology, which enables complete protocol capture, fast signal locking, and very little loss and jitter. The analyzer can be controlled either by using a one (1) Gigabit Ethernet connection to the local network, or a USB connection. The SierraNet M1288 provides the user with easy-to-understand control panel and LED indicators.

Major features of the M1288 include:

• triggering on back-to-back events,

• use of counters within trigger conditions, and

• multi-state (up to 24) triggering and filtering state machines with four transitions per state.

The Net Protocol Suite software for controlling the analyzer and displaying the captured data installs on the latest Microsoft® Windows® version.

See the ReadMe file for the latest information on host machine requirements.

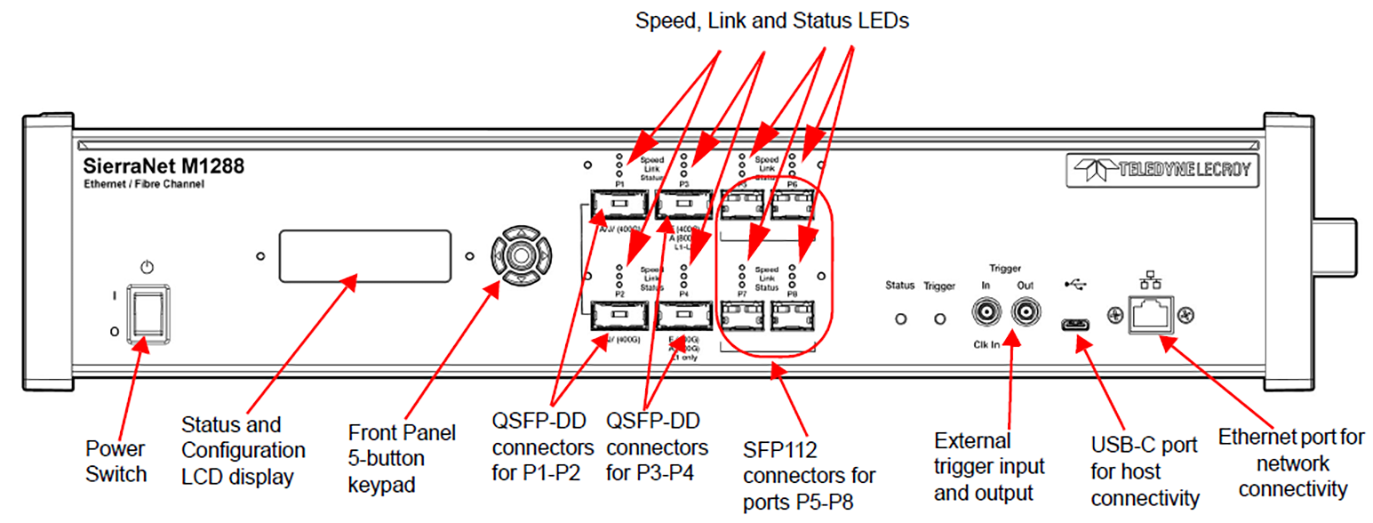

M1288 Analyzer Front

The M1288 Analyzer has the following front features:

M1288 LEDs

LED Indicators for ports P1- P2, P3-P4, P5-P6, P7-P8 for Speed, Link and Status:

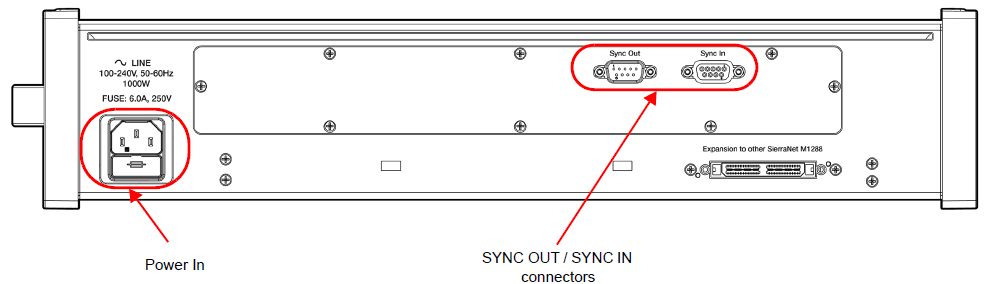

M1288 Analyzer Back

On the back, the M1288 Analyzer has Power In and Sync In/Sync Out connectors.
