The SierraNet M328Q analyzer is Teledyne LeCroy’s QSFP+ 10/25/40/50/100 Gigabit Ethernet and Gen6 Fibre Channel Analyzer/Jammer platform. It has two QSFP28 ports. Up to 128 GB of capture memory allows for capturing of extensive line-speed data. The analyzer can be controlled with either a one (1) Gigabit Ethernet connection to the local network, or a USB connection.
The SierraNet M328Q provides the user with easy-to-understand control panel and LED indicators. Major features of the M328Q include triggering on back-to-back events, use of counters within trigger conditions, and multi-state (up to 24) triggering and filtering state machines with four transitions per state and FlexPort, which allows concurrent Ethernet and FC analysis.
The Net Protocol Suite™ software for controlling the analyzer and displaying the captured data installs on the latest Microsoft® Windows® version. See the ReadMe for the latest information on host-machine requirements.

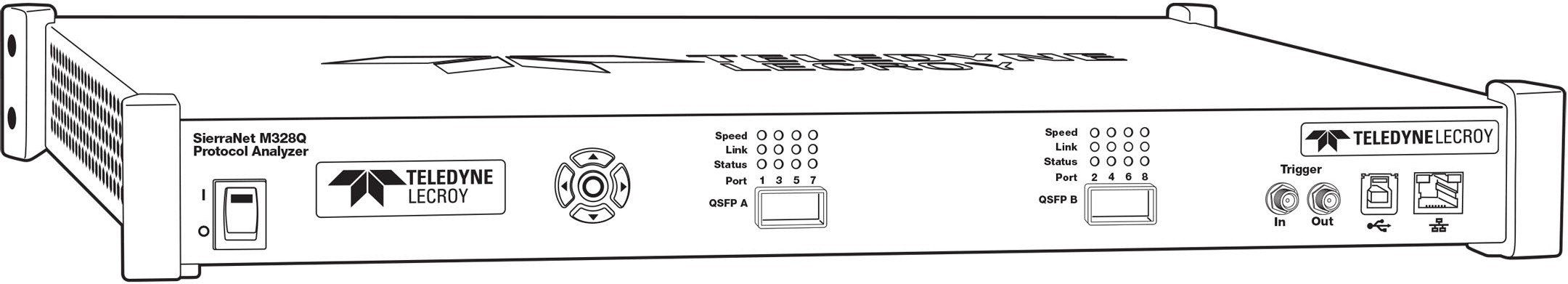

M328Q Analyzer Front Panel

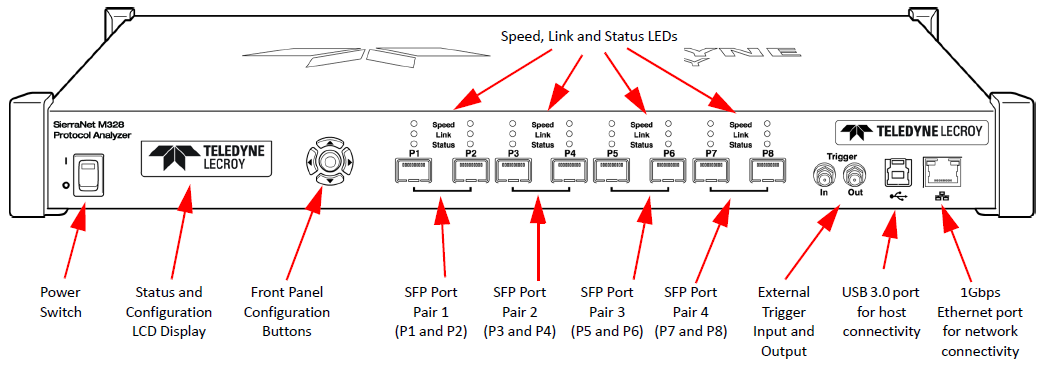

The M328Q Analyzer/Jammer has the following front panel features:

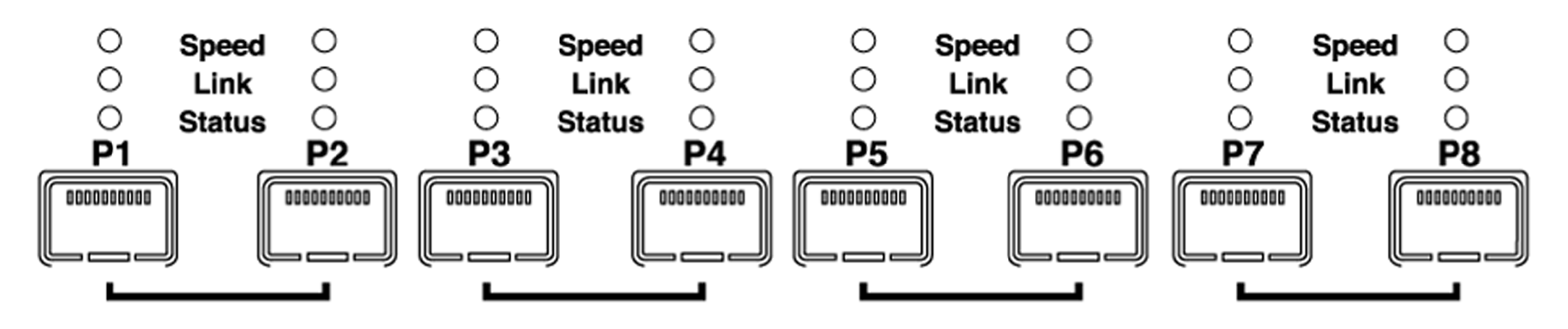

M328Q LEDs
LEDs indicators support each port link pair (A - B) with the following functionality.
|
M328Q LEDs |
||
|---|---|---|
|
|
Ethernet |
Fibre Channel |
|
Speed LEDs (Mode Dependent) |
||
|
Yellow |
|
|
|
Green |
|
|
|
Blue |
|
|
|
Link Activity LEDs |
||
|
Green |
|
|
|
Yellow |
|
|
|
No Color |
|
|
|
Status LEDs |
||
|
Yellow Blinking |
|
|
|
Yellow |
|
|
|
Red |
|
|
|
No Color |
|
|

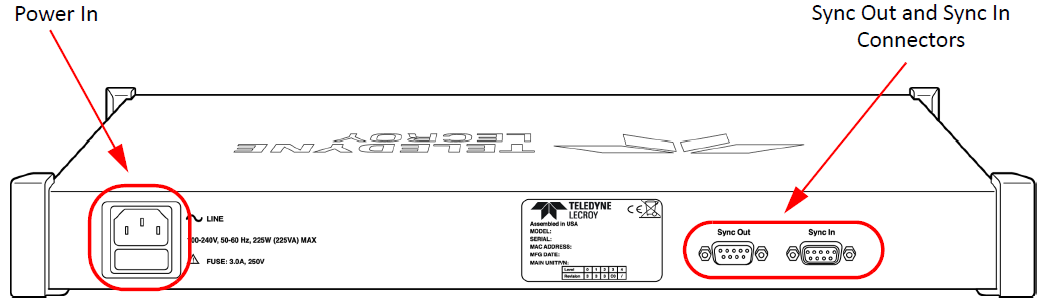

M328Q Analyzer Rear Panel
On the back, the M328Q Analyzer has Power In and Sync Expansion Connectors.
