This view provides a new layer to combine related USB4 transfers for a router/port operation and decode operation layer fields based on combined payload from USB4 transfers.
To view USB4 operations, switch to USB4 Operations viewing level:
-
Click
OR
-
Select View > Level Viewing > USB4 Operation Level.
OR
-
Select Setup > Display Options to display the Display Options window, select USB4 Operation, then click OK.

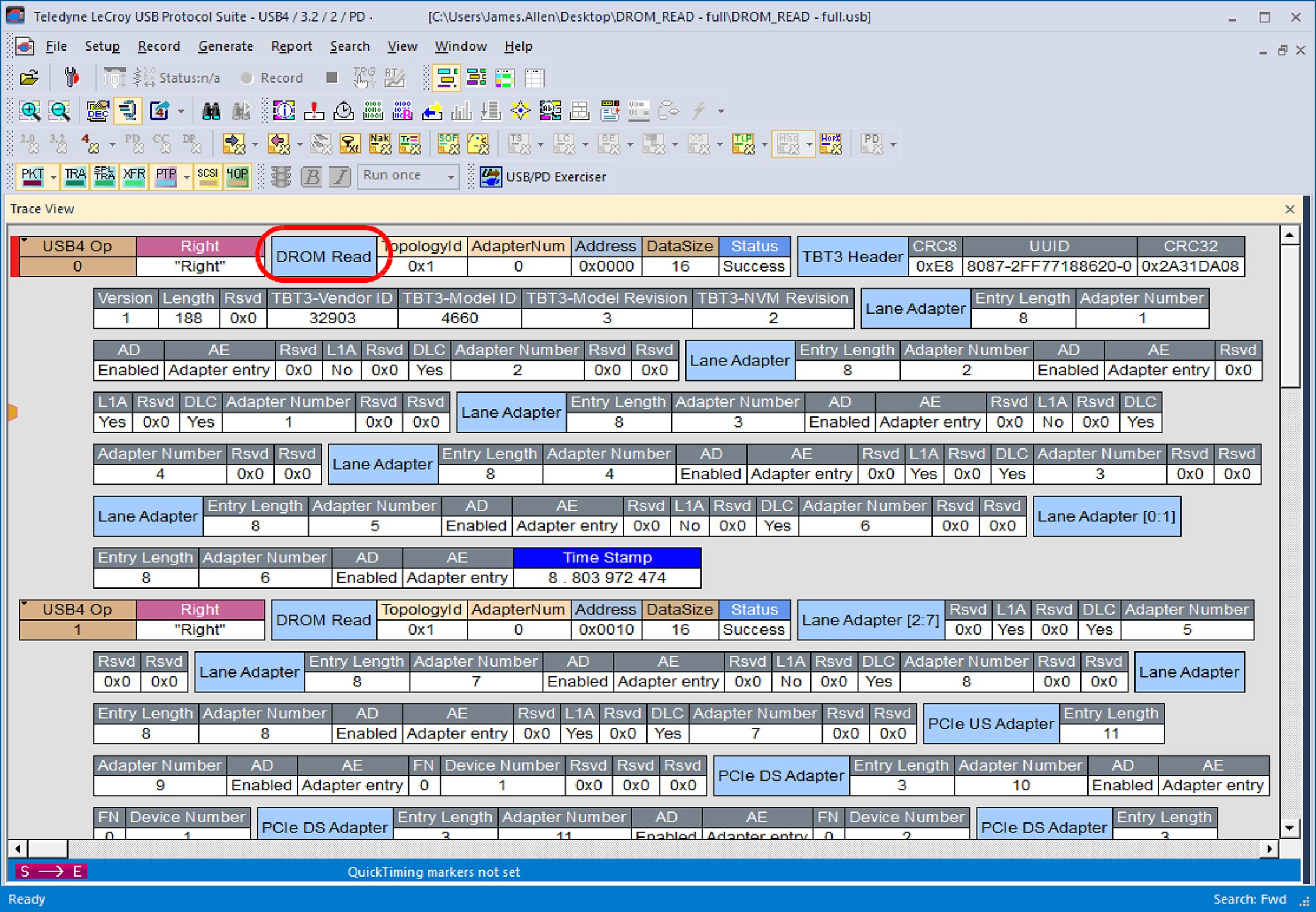

A sample trace with USB4 Operations with DROM READ decoded is shown below.
