Spec View

Spec View shows packet header information for USB 3.2, Power Delivery, USB4 Sideband and Display Port traffic.

To open Spec View, go to Report > Spec View or click the att_3_for_337054051.png Spec View toolbar icon.

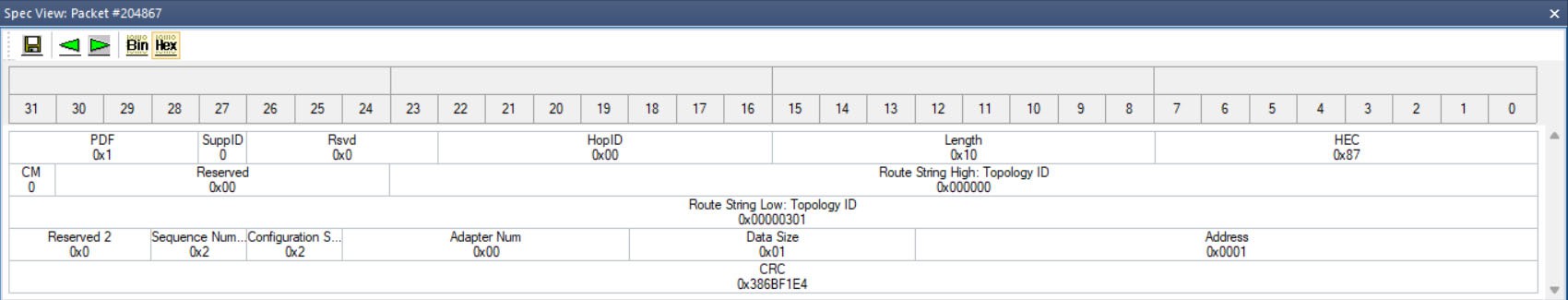

Spec View

The toolbar allows you to Save, go to Previous or Next and display Binary or Hexadecimal.

Spec View Toolbar

NOTE: Selecting a field in Spec View highlights the corresponding field in Trace View and Detail View. See Section Field Highlighting.
