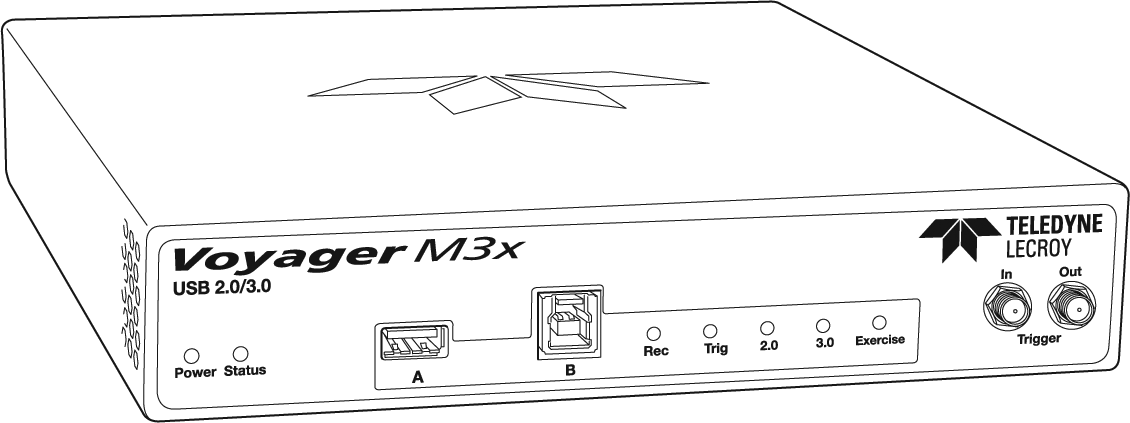

The Teledyne LeCroy Voyager™ M3x Analyzer and Exerciser system is a multifunction verification system for USB 2.0 and USB 3.2 development and testing. It can record traffic and graphically present logical USB transactions and events. It can also generate USB traffic. The system connects to a laptop or desktop via its USB or Gigabit Ethernet port.
See the ReadMe file from the software installation site for the latest on host machine requirements and supported operating systems: https://teledynelecroy.com/sw/usb/
USB 3.2 and USB 2.0 Features

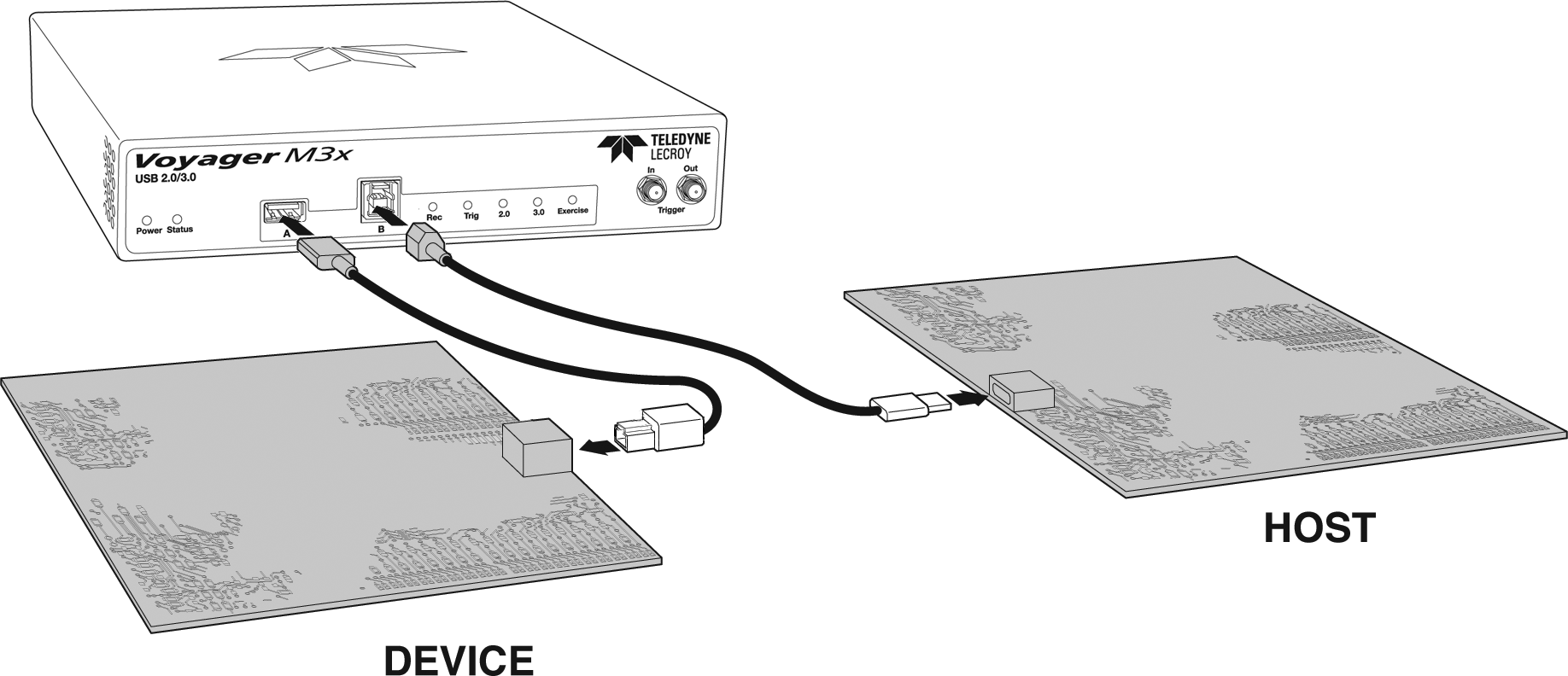

The system can monitor traffic between USB 2.0 links using standard high-speed compliant cables.
If configured for USB 3.2 SS testing, the system supports monitoring between SuperSpeed links using USB 3.2 cables.
Features
In addition to the features it has in common with other analyzers, the M3x has the following specifications.
General
Supports the following USB speeds: 5 Gb/s, 480 Mb/s, 12 Mb/s, and 1.5 Mb/s
Flexible 3.2 Calibration
Each link can be calibrated with respect to received equalization and gain
Physical Components
4 GB of physical data-recording memory
