Voyager M310C Analyzer

Warning: The Voyager M310C Power Delivery (PD) Exerciser allows the customer to set Voltages and Current levels to be delivered to/from Devices and Hosts and their connecting cables which may exceed their capabilities.

  • This can cause damage to the devices under test and their cables. Use caution when writing scripts so that these limitations are not exceeded.

  • Power-cycle the M310C unit after PD usage to insure that the go back to their default Voltage and Current states.

The Teledyne LeCroy Voyager™ M310C Analyzer and Exerciser system is a multifunction verification system for USB 3.2, SS and SS+, Power Delivery 2.0 and 3.0, and USB 2.0 development and testing. It uses the USB Type-C™ connectors to monitor both USB and Configuration Channel (CC) traffic and events. It can record traffic and graphically present logical USB transactions and events. It can also generate USB traffic. The system connects to a laptop or desktop via its USB or Gigabit Ethernet port.

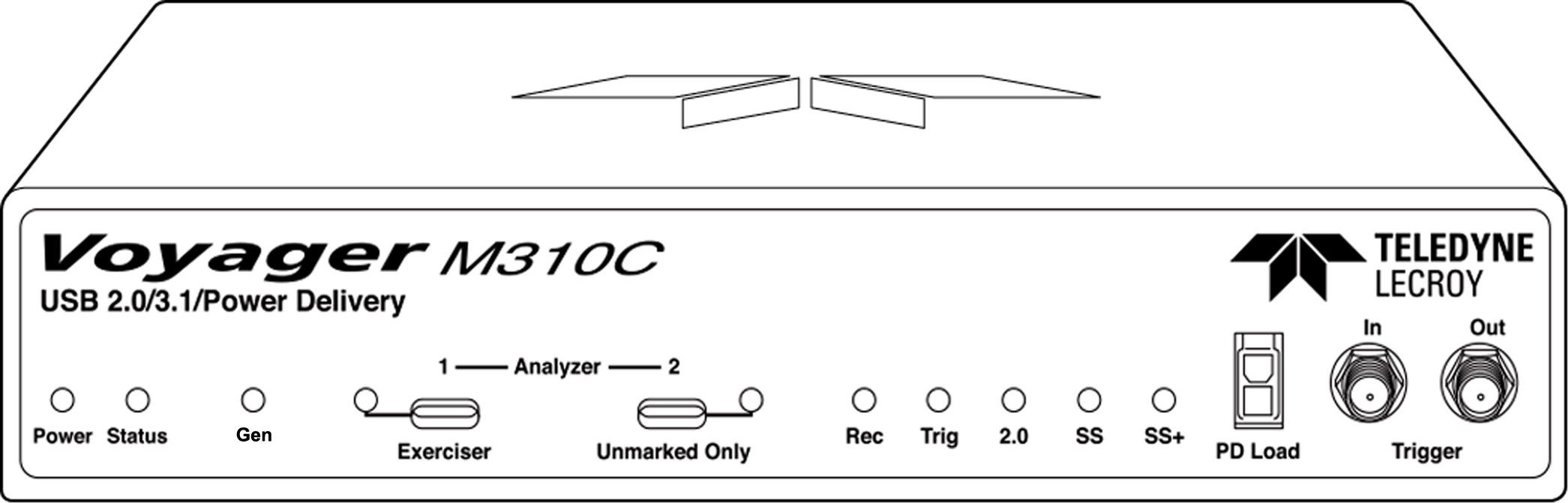

Voyager M310C Analyzer Exerciser System

See the ReadMe file from the software installation site for the latest on host machine requirements and supported operating systems: https://teledynelecroy.com/sw/usb/

USB 3.2 and USB 2.0 Features

The system can monitor traffic between USB 2.0 links using standard high-speed compliant cables and USB 3.2 SS Gen 1 (5Gbps) and USB 3.2 SS+ Gen 2 (10Gbps) links using compliant USB Type-C™ connector cables.

If configured for USB 3.2 SS+ (10Gbps) testing, the system supports monitoring between SuperSpeed Plus links using USB 3.2 SS+ USB Type-C™ connector cables. Analysis of 10 Gbps Super Speed Plus traffic requires the use of short, low-loss, high quality cables, as provided by Teledyne LeCroy with your M310C product. Use of other cables may compromise the signal quality and prevent capturing of the traffic. The use of 2 Electronically Marked cables is not permitted. Electronically Marked cables should use the left connector, marked “1”.

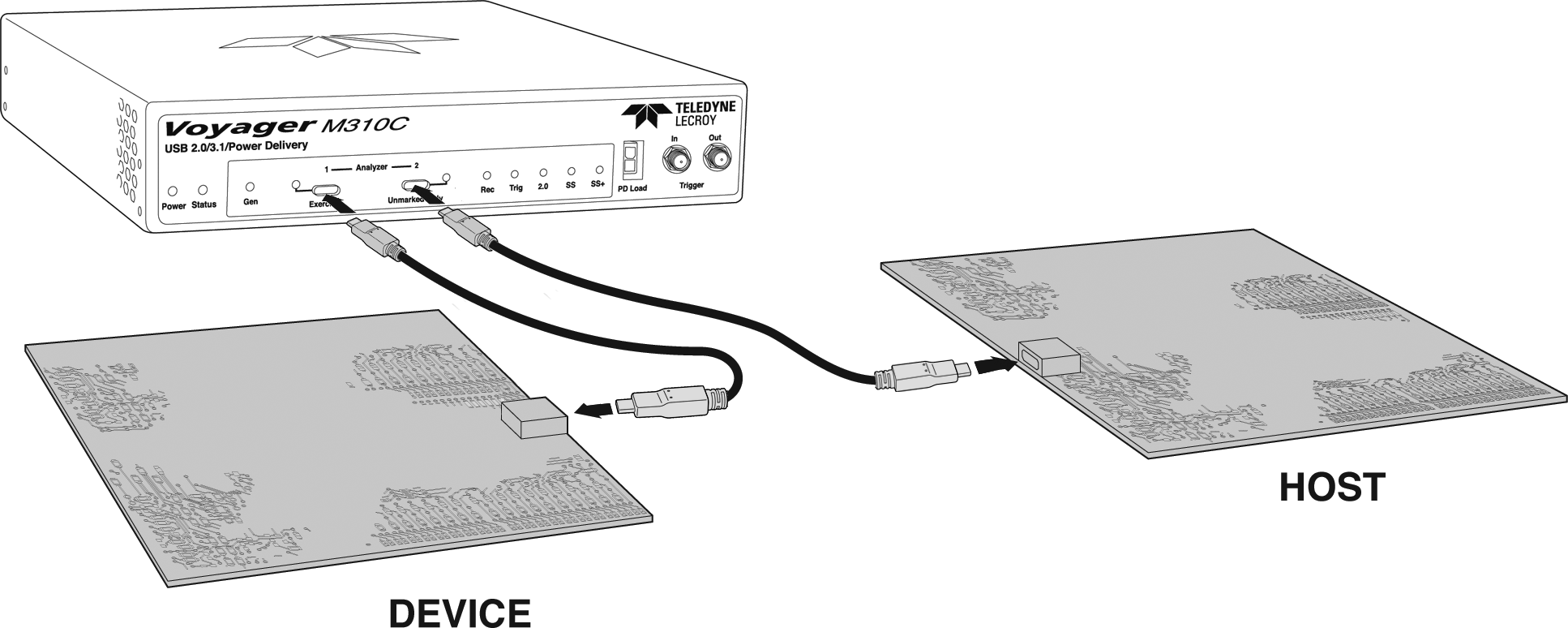

Typical Direct Connection using USB 3.2 Cables

Features

In addition to the features it has in common with other analyzers, the M310C:

General

Supports the following USB speeds: 10GB/s, 5 Gb/s, 480 Mb/s, 12 Mb/s, and 1.5 Mb/s

Physical Components

  • Plug-and-Play USB installation

  • 16 GB of physical data-recording memory

  • USB 3.2 Super-Speed connection to desktop or portable host machine

  • USB 3.2 USB Type-C™ type connectors for SuperSpeed Plus capture and generation

  • Integrated CATC Sync ports to support cascading analyzers or Cross-Sync configurations
