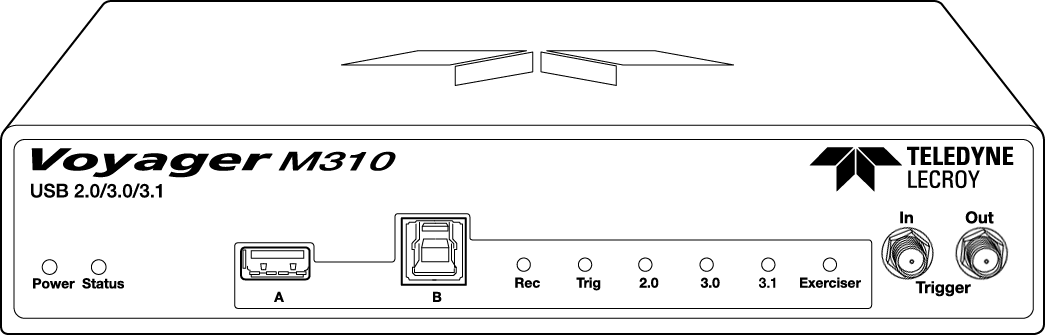

The Teledyne LeCroy Voyager™ M310 Analyzer and Exerciser system is a multifunction verification system for USB 3.2 and 2.0 development and testing. It can record traffic and graphically present logical USB transactions and events. It can also generate USB traffic. The system connects to a laptop or desktop via its USB or Gigabit Ethernet port.
See the ReadMe file from the software installation site for the latest on host machine requirements and supported operating systems: https://teledynelecroy.com/sw/usb/
USB 3.2 and USB 2.0 Features

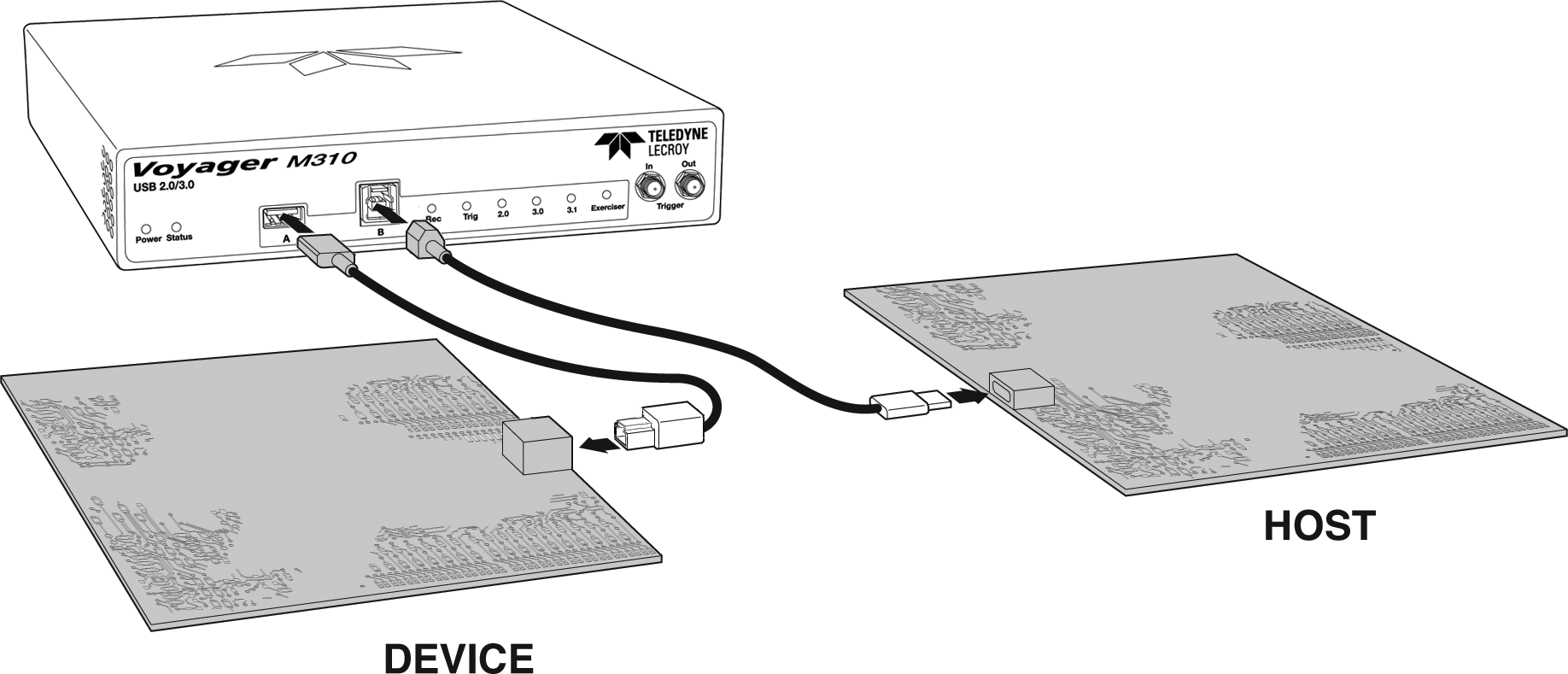

The system can monitor traffic between USB 2.0 links using standard high-speed compliant cables.
If configured for USB 3.2 SS testing, the system supports monitoring between SuperSpeed links using USB 3.2 SS compliant cables.
If configured for USB 3.2 SS+ (10 Gbps) testing, the system supports monitoring between SuperSpeed Plus links using USB 3.2 SS+ compliant cables. Analysis of 10 Gbps Super Speed Plus traffic requires the use of short, low-loss, high quality cables, as provided by Teledyne LeCroy with your M310 product. Use of other cables may compromise the signal quality and prevent capturing of the traffic.
Features
In addition to the features it has in common with other analyzers, the M310 has the following specifications.
General
Supports the following USB speeds: 10GB/s, 5 Gb/s, 480 Mb/s, 12 Mb/s, and 1.5 Mb/s
Physical Components
16 GB of physical data-recording memory
