Voyager M310P Analyzer

Warning: The Voyager M310P Power Delivery (PD) Exerciser allows the customer to set Voltages and Current levels to be delivered to/from Devices and Hosts and their connecting cables which may exceed their capabilities.

  • This can cause damage to the devices under test and their cables. Use caution when writing scripts so that these limitations are not exceeded.

  • Power-cycle the M310P unit after PD usage to insure that the go back to their default Voltage and Current states.

The Teledyne LeCroy Voyager™ M310P Analyzer and Exerciser system is a multifunction verification system for USB 3.2, SS and SS+, Power Delivery 2.0 and 3.0, and USB 2.0 development and testing. It uses the USB Type-C™ connectors to monitor both USB and Configuration Channel (CC) traffic and events. It can record traffic and graphically present logical USB transactions and events. It can also generate USB traffic. The system connects to a laptop or desktop via its USB or Gigabit Ethernet port.

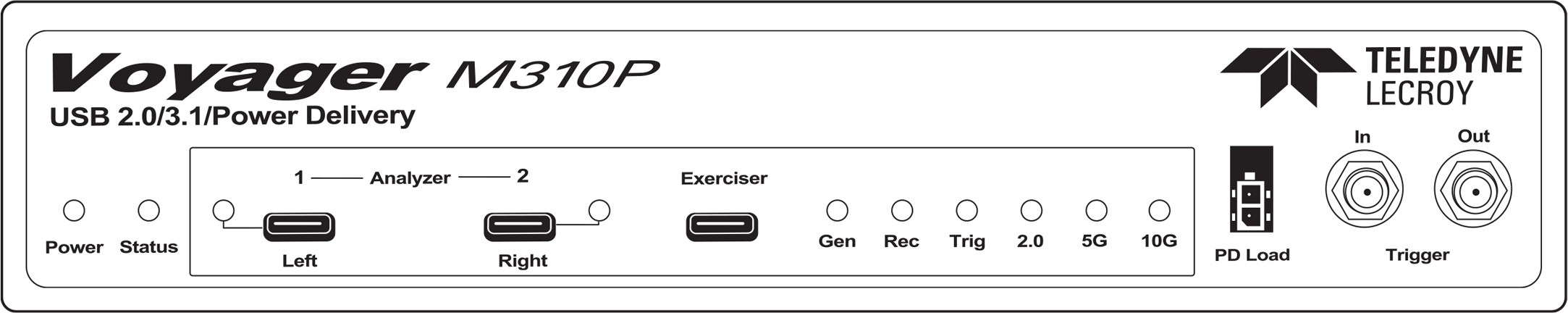

Voyager M310P Analyzer Exerciser System

See the ReadMe file from the software installation site for the latest on host machine requirements and supported operating systems: https://teledynelecroy.com/sw/usb/

USB 3.2 and USB 2.0 Features

The system can monitor traffic between USB 2.0 links using standard high-speed compliant cables and USB 3.2 SS Gen 1 (5Gbps) and USB 3.2 SS+ Gen 2 (10Gbps) links using compliant USB Type-C™ connector cables.

If configured for USB 3.2 SS+ (10Gbps) testing, the system supports monitoring between SuperSpeed Plus links using USB 3.2 SS+ USB Type-C™ connector cables. Analysis of 10 Gbps Super Speed Plus traffic requires the use of short, low-loss, high quality cables, as provided by Teledyne LeCroy with your M310P product. Use of other cables may compromise the signal quality and prevent capturing of the traffic. Electronically Marked cables may be used in either of the connectors marked “Left” and “Right”.

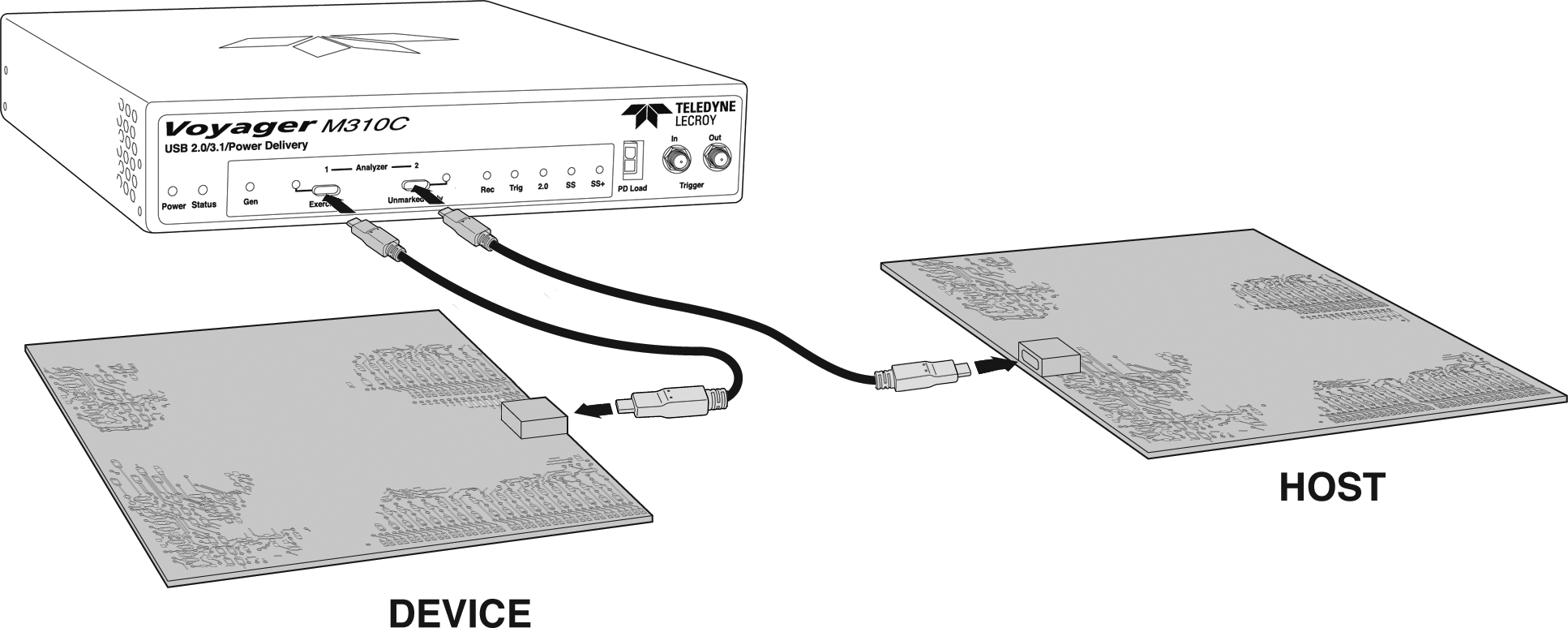

Typical Direct Connection using USB 3.2 Cables

Features

In addition to the features it has in common with other analyzers, the M310C has the following specifications.

General

  • Supports the following USB speeds: 10GB/s, 5 Gb/s, 480 Mb/s, 12 Mb/s, and 1.5 Mb/s

  • Passive Tapping of the SuperSpeed Signals is the least intrusive method of capturing packets and events: No Termination Proxies necessary

Physical Components

16 GB of physical data-recording memory
