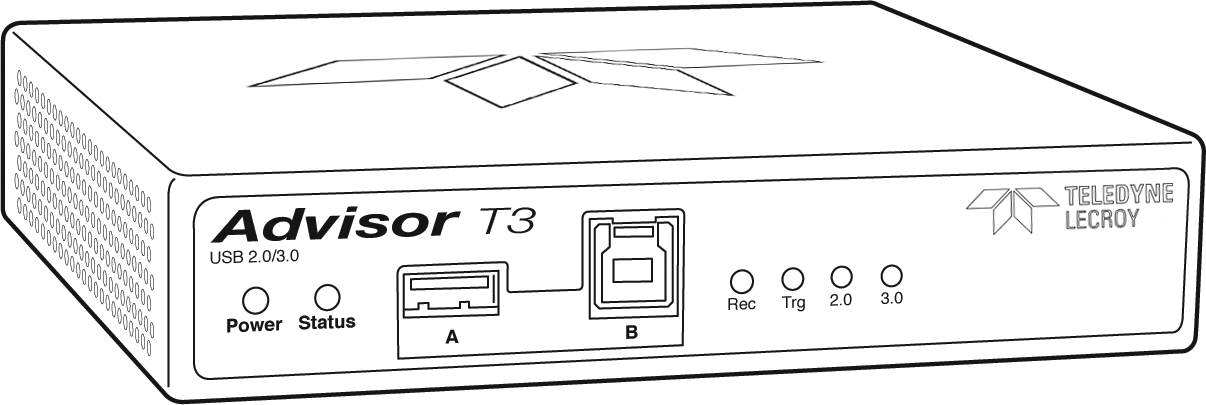

The Teledyne LeCroy USB Advisor T3™ USB 3.2 Protocol Analyzer is a verification system for USB development and testing. It supports both USB 2.0 and USB 3.2. It can record USB traffic and graphically present the logical transactions and events. It connects to a laptop or desktop host machine through its USB port.
The system can monitor traffic between USB 2.0 links using standard high-speed compliant cables.
If configured for USB 3.2 testing, the system supports monitoring between SuperSpeed links using USB 3.2 cables.
See the ReadMe file from the software installation site for the latest on host machine requirements and supported operating systems: https://teledynelecroy.com/sw/usb/
Features
In addition to the features it has in common with other analyzers, the Advisor T3 has the following specifications:
General
Supports the following USB speeds: 5 GB/s, 480 MB/s, 12 MB/s, and 1.5 MB/s
Flexible 3.2 Calibration
Each link can be calibrated with respect to received equalization and gain
Physical Components
-
Plug-and-Play USB installation
-
2 GB of physical data-recording memory
-
DC power supply
-
Expansion port for optional External Trigger In/Out cable, as well as multi-box synchronized recording
-
USB 3.2 connectors for SuperSpeed capture and generation
