View Data Block

The data field pop-up menu has an option for viewing the raw bits in a data field.

To view raw bits:

1. Click the data field to open its pop-up menu.

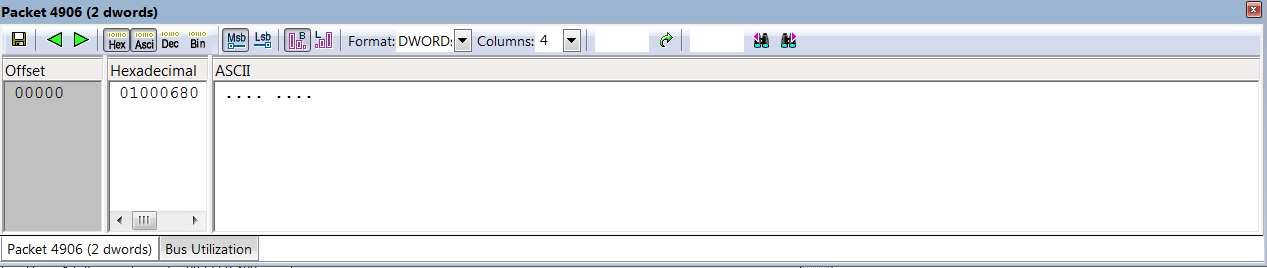

2. Select View Data Block or click the Data View button to open the Data Block dialog box, below.

The View Data Block window has options for displaying the raw bits in different formats:

• Format: Lets you display data in Hex, Decimal, ASCII or Binary formats.

• Show Per Line: Lets you control how many bits are displayed per line.

• Bit Order: Most Significant Bit, Least Significant Bit.
