Power Delivery

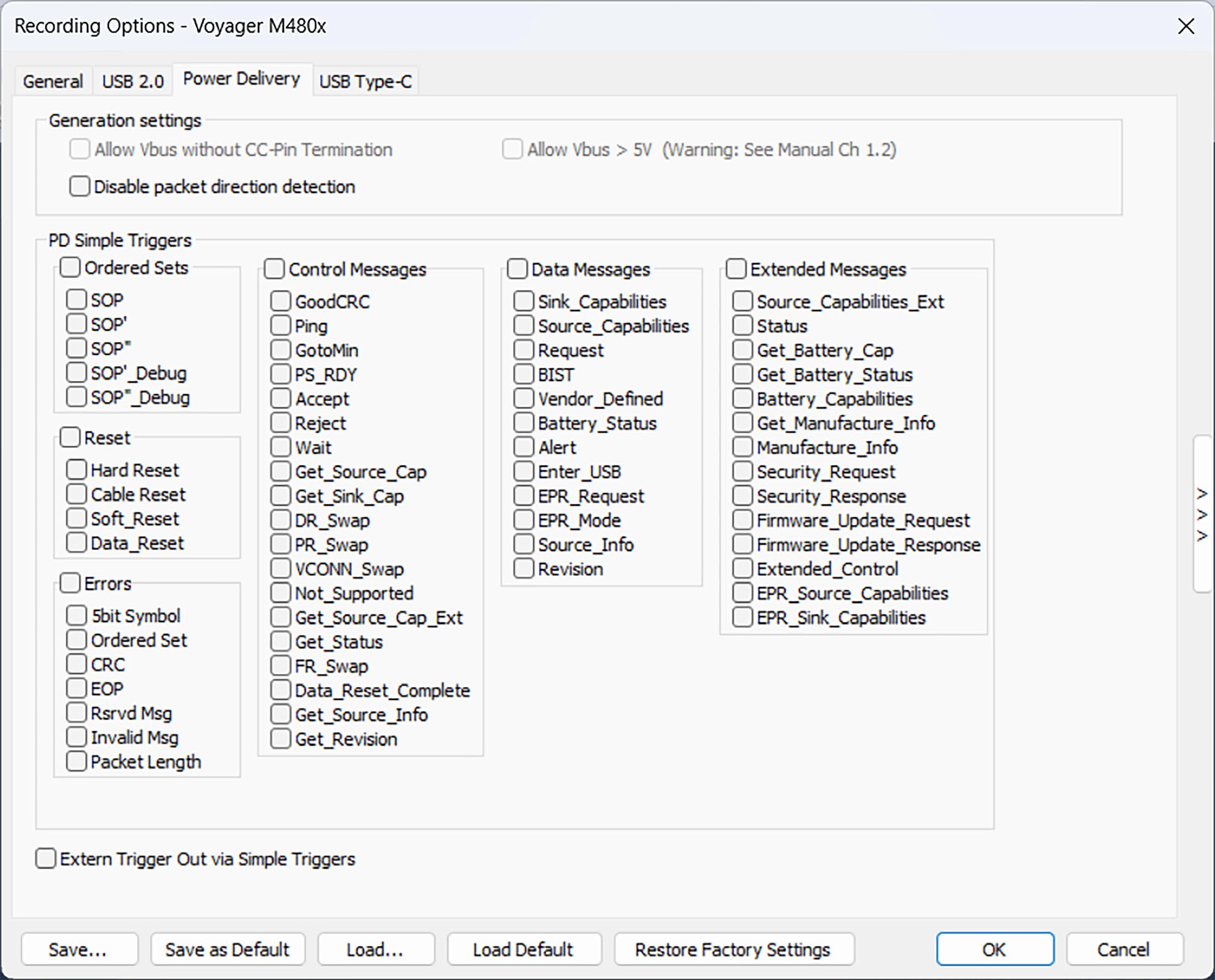

Figure 5.13: Power Delivery Recording Options

The Power Delivery options are the same for Analyzer Mode and Exerciser Mode.

NOTE: Selecting Extern Trigger Out via Simple Triggers causes a Trigger Pulse on the external Trigger Out Cable when the External Trigger Cable AC032XXA-X is attached.

WARNING: Allow VBUS without CC-Pin Termination: This checkbox allows you to override the Type-C/PD protocol. This features was added so that during development you can test the SS+ protocol without requiring the Type-C/PD Protocols to establish VBUS.

WARNING: Allow VBUS > 5V: This checkbox allows you to generate voltages on VBUS as high as 20 Volts. See Voyager M310C Analyzer. Since this can damage devices which are not tolerant of anything more than 5 Volts, it is unwise to check this unless you are sure your scripts are written so that they do not damage your equipment or cables. It is recommend that you always use 5 Amp cables for most Power Delivery Exerciser scenarios.
