System Components and Packing List
The Teledyne LeCroy Voyager M4x analyzer package includes the following:
-
Voyager M4x protocol analyzer/exerciser system
-
AC power cord
-
11 USB cables
-
USB4/USB 3.2: C-C unmarked 40Gbps (X2), C-C eMarked 40Gpbs, C-C VCONN-thru 40Gbps
-
USB 3.2: C-uB, C-B, C-A, C-A receptacle, A-B
-
USB 2.0: C-B, C-uB
-
-
-
Quick Start Guide
Host Machine Requirements
Refer to the USBProtocolSuite_Readme.html file from the software installation site for the current host machine and operating system requirements.
Analyzer

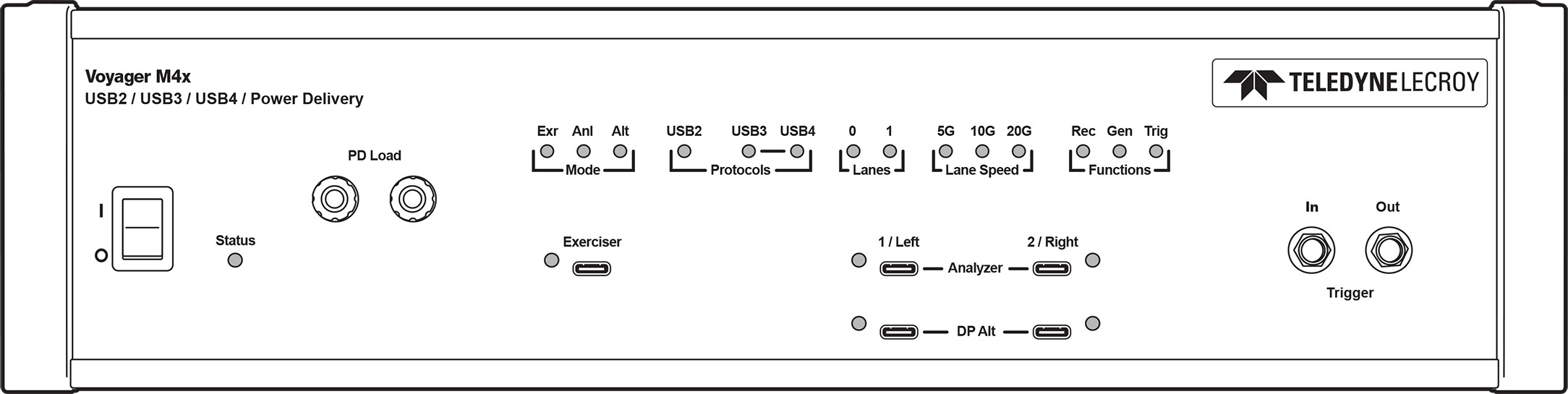

The analyzer is shown in the figures below.
M4x Features
The features of the analyzer are listed in the following table.
|
Feature |
Function |
|
Front Panel |
|
|
Power LED |
Green: Plugged in and powered on |
|
Status LED |
Blue: System successfully initialized |
|
Red: Hardware failure |
|
|
Green: Initializing |
|
|
Mode |
|
|
Exr |
Green: Exerciser or Trainer Mode |
|
Anl |
Green: Analyzer Mode – USB4, USB 3.2, USB 2.x, PD, TBT3 |
|
Alt |
Green: DP Alt mode – USB 2, PD, Display Port Aux Channel |
|
Protocols |
|
|
USB2 |
Yellow: Low and Full Speed Green: Hi Speed |
|
USB3 |
Green: USB 3.2 Capture is enabled (x1 or x2) |
|
USB4 |
Green: USB4/TBT3 Capture is enabled |
|
Lane |
|
|
0 |
Green: Lane 0 is Active |
|
1 |
Green: Lane 1 is Active |
|
Lane Speed |
|
|
5G |
Green: Data Speed on Rx/Tx is 5Gbps/lane |
|
10G |
Green: Data Speed on Rx/Tx is 10Gbps/lane |
|
20G |
Green: Data Speed on Rx/Tx is 20Gbps/lane |
|
Functions |
|
|
Rec |
Green: Recording (if Recording enabled) |
|
Gen |
Green: Exerciser/Generator is active |
|
Trig |
Yellow: Triggered (if trigger occurred) |
|

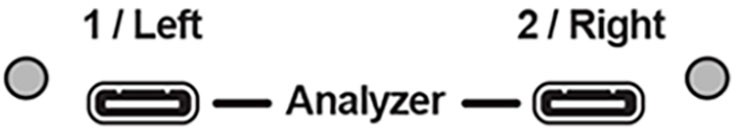

Analyzer Connectors 1/Left and 2/Right |
|
|
LEDs Off |
No cable attached |
|
Solid Red |
Plug is Upside Down. Invert and re-insert. |
|
Solid Green |
Plug is correctly oriented |
|
DP Alt Connectors 1/Left and 2/Right |
|
|
LEDs Off |
No cable attached |
|
Solid Red |
Plug is Upside Down. Invert and re-insert. |
|
Solid Green |
Plug is correctly oriented |
|
Trigger |
|
|
In |
SMA external trigger input. NOTE: Edge detected (Rising or Falling) Voltage required. Signal needs to be > 800mV to see a logic “1”, Signal needs to be < 400mV to see a logic “0”. Maximum value of the external input signal which can be input is 5 V. Minimum value is 0 V. These conditions will trigger the analyzer to start recording or will trigger the action specified in Advanced Recording Options (if applicable). |
|
Out |
SMA external trigger output. Pulse Width = 280 ns. Pulse Voltage = 3.3 Volts into 1 MegOhms. Pulse Voltage = 2.7 Volts into 50 Ohms. Pulse is positive going. |
|

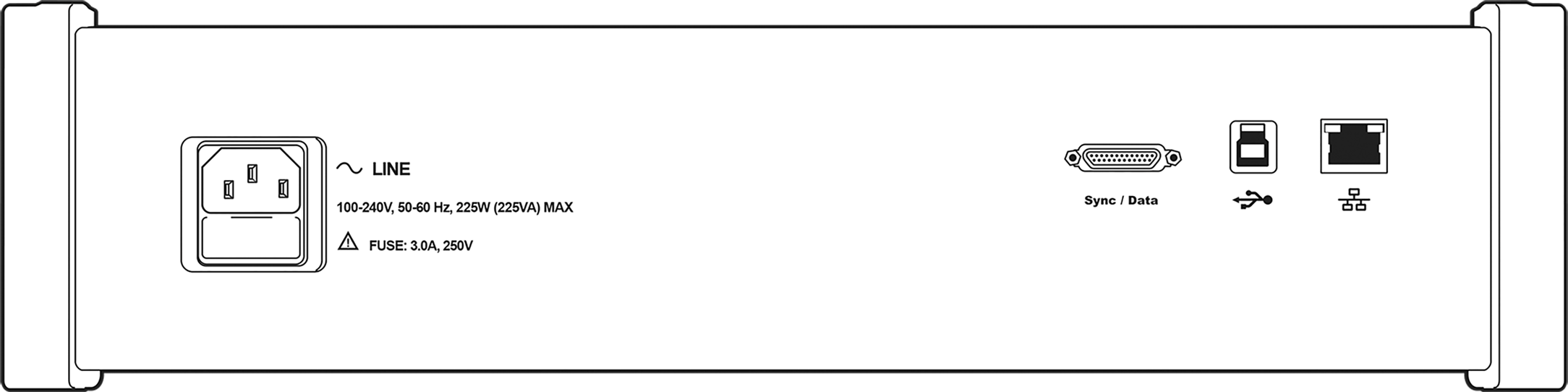

Rear Panel |
|
|
Sync/Data |
Used for Daisy Chaining and Cross Sync with Cable (P/N AC031XXA-X), as well as 8-bit Data Capture and external Trig In/ Out (P/N AC050XXA-X) (Cables sold separately). The 8-bit data signals use a threshold of 0.8V, with 50 mV hysteresis. The circuit is 5 volt tolerant. |
|
Ethernet |
Gigabit Ethernet for connection to host machine. |
|
USB |
USB 3.2 Super Speed Standard B Connector to host machine. |
|
AC IN |
100-250V AC, 250 Watts. |
|
Power Switch |
(0/1) Off/On |
WARNING: Do not open the Voyager M4x enclosure. No operator-serviceable parts are inside. Refer servicing to Teledyne LeCroy Customer Care.
Specifications
The analyzer specifications are shown below.
|
Tool/Utility |
Specification |
|
Power Requirements |
100-250V AC, 225 Watts |
|
Environmental Conditions |
|
|
Operating Temperature Storage Range Operating Humidity Operating Altitude |
0 to 50 °C (32 to 122 °F) -20 to 80 °C (-4 to 176 °F) 10 to 90%, non-condensing Up to 6560 feet (2000 meters) |
|
Probing Characteristics |
|
|
Connection |
USB4 grade USB Type-CTM connectors: The Voyager analyzer and exerciser port differential input impedance on the USB4 signal wires is between 80 and 120 ohms. USB Type-CTM connector cables High Speed USB Connectors Standard cables NOTE: The USB 2.0 exerciser port is not terminated differentially. The single ended termination is 45 ohms to ground +/- 10% or between 40.5 and 49.5 ohms. The effective differential USB 2.0 termination is between 80 and 100 ohms (90 ohms +/- 10%). |
|
Switches |
Power On/Off |
|
Recording Memory Size |
32 GB for traffic data capture, timing, state and other data |
Voyager M4x Specific Setup Notes
The Type-C connectors on the front are meant to connect to Hosts (which have a DFP or Downstream Facing Port) and Devices (which have a UFP or Upstream Facing Port) as indicated below. Note that it will work the “other way” (Host on Left, Device on Right); however, it is preferred to connect as indicated so that the default setup is similar to our previous 10 USB analyzers, which used an “A” connector on left and a “B” connector on the right. This makes the traces easier to understand and support by our Support Team, and reduces the number of setup diagrams to follow. Of course, the data roles can swap via USB protocol, which our traces will track.
NOTE: Analysis of traffic requires the use of short, low-loss, high-quality cables. The cables provided by Teledyne LeCroy, which have the Teledyne LeCroy label on them, have been verified to provide excellent signal quality. Using other cables may compromise the signal quality and prevent capturing of clean traffic.
