System Components and Packing List
The Teledyne LeCroy Voyager M310C analyzer package includes the following:
-
Voyager M310C protocol analyzer/exerciser system
-
AC power adapter and cord
-
10 USB cables
-
3.2: C-C Unmarked (5A capable) (x2), C-C 5A 10Gbps E-Marked, C-uB, C-B, C-A, C-A Receptacle, A-B
-
2.0: C-B, C-uB
-
-
Quick Start Guide
Host Machine Requirements
Refer to the USBProtocolSuite_Readme.html file from the software installation site for the current host machine and operating system requirements.
Analyzer

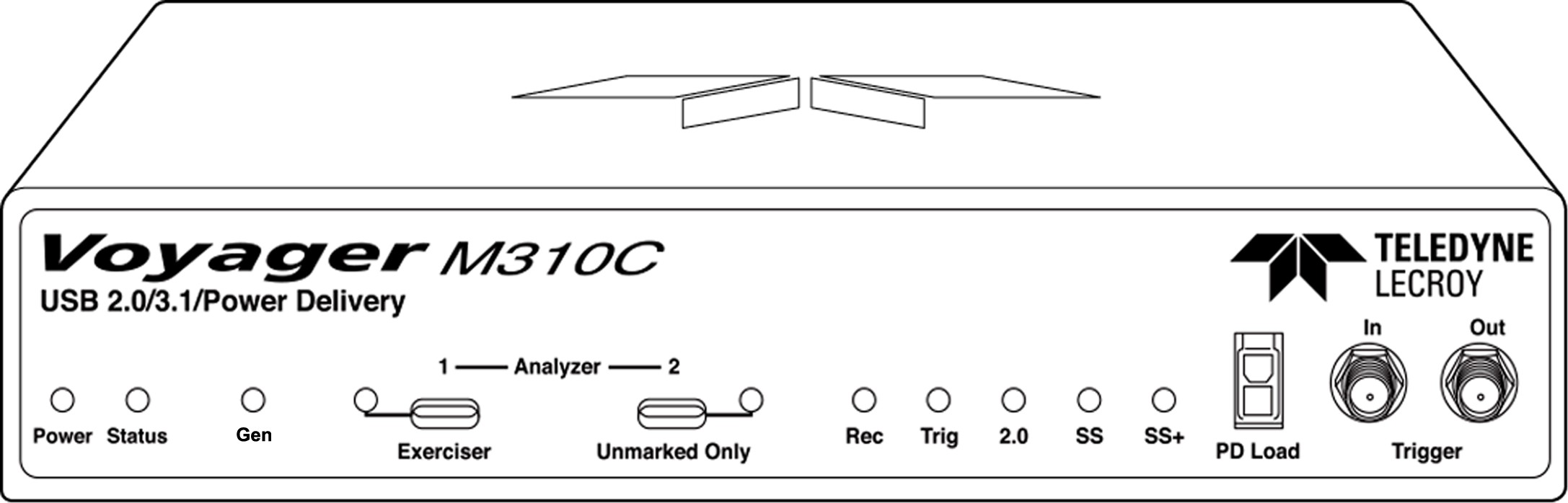

The analyzer is shown below.
M310C Features
The features of the analyzer are listed below.
|
Feature |
Function |
|
Front Panel |
|
|
Power LED |
Green if plugged in and powered on |
|
Status LED |
Blue if system successfully initializes Red if hardware failure Green while initializing |
|

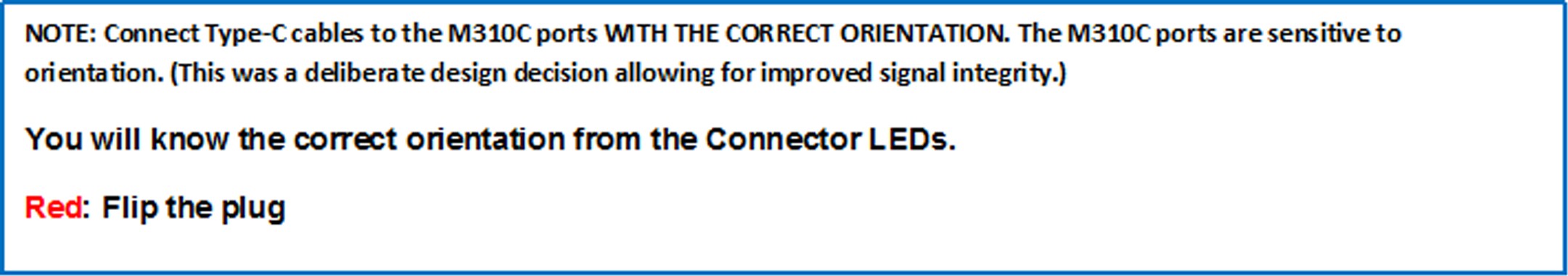

C Connectors 1 & 2 Q– LEDs |
|
|
Off |
No cable attached |
|
Solid Red |
Plug is Upside Down. Invert and re-insert. |
|
Solid Green |
Plug is correctly oriented |
|
Solid Yellow |
Special Condition |
|
Analyzer LEDs |
|
|
Gen |
Generating Green if generating enabled |
|
Rec |
Recording Green if 3.2 recording enabled in Analyzer mode |
|
Trig |
Yellow when triggered |
|
2.0 |
USB 2.0 |
|
Solid Yellow |
FS SOFs, LS EOPs, or control endpoint traffic |
|
Slow Flashing Yellow |
LS Traffic on endpoints other than 0 (resets activity timer as in 3.2) |
|
Fast Flashing Yellow |
FS Traffic on endpoints other than 0 (resets activity timer as in 3.2) |
|
Solid Green |
HS SOFs or control endpoint traffic |
|
Flashing Green |
HS traffic on endpoints other than 0 (resets activity timer as in 3.2) |
|
SS |
USB 3.2 SuperSpeed (5 Gbps) |
|
Off |
No traffic or LFPS |
|
Solid Yellow |
Only Polling LFPS |
|
Slow Flashing Yellow |
Low Power States |
|
Fast Flashing Yellow |
Symbol Traffic, Training (TS1/TS2/TSEQ) |
|
Solid Green |
Link Traffic (U0) LUP, LDN |
|
Blinking Green |
TPs and DPs (actual traffic) |
|
SS+ |
USB 3.2 SuperSpeed Plus (10Gbps) |
|
Off |
No traffic or LFPS |
|
Solid Yellow |
Only Polling LFPS with LBPM/SCDx messages |
|
Slow Flashing Yellow |
Low Power States |
|
Fast Flashing Yellow |
Symbol Traffic, Training (TS1/TS2/TSEQ) |
|
Solid Green |
Link Traffic (U0) LUP, LDN |
|
Blinking Green |
TPs and DPs (actual traffic) |
|
Trigger |
|
|
In |
SMA external trigger input. NOTE: Edge detected (Rising or Falling) Voltage required. Signal needs to be > 800mV to see a logic “1”, Signal needs to be < 400mV to see a logic “0”. Maximum value of the external input signal which can be input is 5 V. Minimum value is 0 V. These conditions will trigger the analyzer to start recording or will trigger the action specified in the Advanced Recording Options. |
|
Out |
SMA external trigger output. Pulse Width = 280 ns. Pulse Voltage = 3.3 Volts into 1 MegOhms. Pulse Voltage = 2.7 Volts into 50 Ohms. Pulse is positive going. |
|

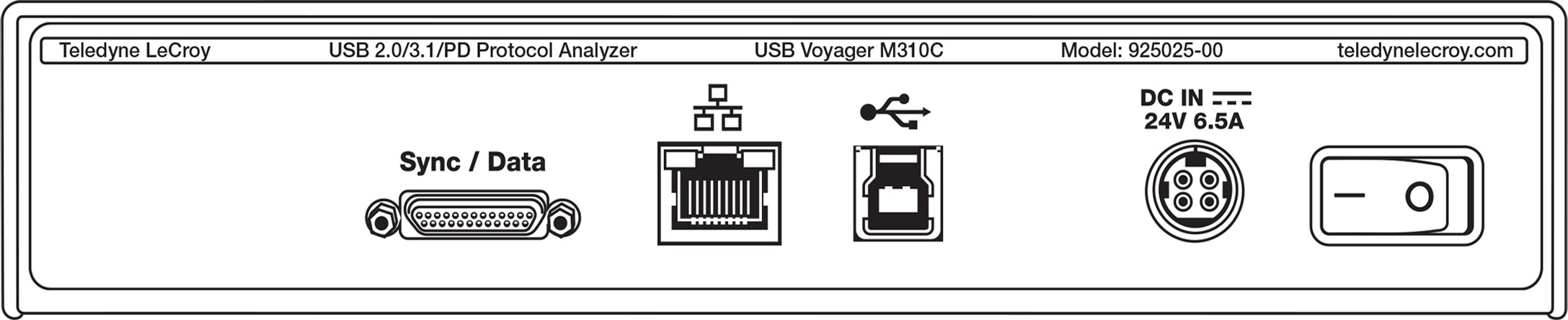

Rear Panel |
|
|
Sync/Data |
Used for Daisy Chaining and Cross Sync with Cable (P/N AC031XXA-X), as well as 8-bit Data Capture and external Trig In/ Out (P/N AC050XXA-X) (Cables sold separately). The 8-bit data signals use a threshold of 0.8V, with 50 mV hysteresis. The circuit is 5 volt tolerant. |
|
Ethernet |
Gigabit Ethernet for connection to host machine. |
|
USB |
USB 3.2 Super Speed Standard B Connector to host machine. |
|
DC IN |
24V, 6.67A power supply connector. |
|
Power Switch |
(0/1) Off/On |
NOTE: USB 2.0 Link LEDs operate only while USB 2.0 Recording or Real- Time Statistics (RTS) are running. USB 3.2 LEDs always operate, unless USB 3.2 has been disabled in the Recording Options General tab.
WARNING: Do not open the Voyager M310C enclosure. No operator-serviceable parts are inside. Refer servicing to Teledyne LeCroy Customer Care.
Specifications
The M310C analyzer specifications are shown below.
|
Tool/Utility |
Specification |
|
Power Requirements |
24V DC, 6.67 Amps |
|
Environmental Conditions |
|
|
Operating Temperature Storage Range Operating Humidity Operating Altitude |
0 to 50 °C (32 to 122 °F) -20 to 80 °C (-4 to 176 °F) 10 to 90%, non-condensing Up to 6560 feet (2000 meters) |
|
Probing Characteristics |
|
|
Connection |
SuperSpeed Plus USB Type-CTM connectors: The Voyager SuperSpeed (3.2) analyzer and exerciser port differential input impedance is between 80 and 120 ohms. USB 3.2 USB Type-CTM connector cables High Speed USB Connectors Standard cables NOTE: The USB 2.0 exerciser port is not terminated differentially. The single ended termination is 45 ohms to ground +/- 10% or between 40.5 and 49.5 ohms. The effective differential USB 2.0 termination is between 80 and 100 ohms (90 ohms +/- 10%). |
|
Switches |
Power On/Off |
|
Recording Memory Size |
8 GB or 16 GB for traffic data capture, timing, state and other data |
Voyager M310C Specific Setup Notes
The Type-C connectors on the front are meant to connect to Hosts (which have a DFP or Downstream Facing Port) and Devices (which have a UFP or Upstream Facing Port).
Note that the connection can be reversed (Host on Left, Device on Right), but it is preferred to connect as indicated so that the default setup is similar to Teledyne LeCroy’s previous 10 USB analyzers, which used an “A” connector on left and a “B” connector on the right. This makes the traces easier to understand and support by the Support Team, and reduces the number of setup diagrams to follow. The data roles can swap via USB protocol, and the traces will track that.
NOTE: Analysis of USB SS+ (10Gbps) traffic requires the use of short, low-loss, high quality cables. The cables provided by Teledyne LeCroy, which have the Teledyne LeCroy label on them, have been verified to provide excellent signal quality. Using other cables may compromise the signal quality and prevent capturing of clean traffic.
