System Components and Packing List
The Teledyne LeCroy Voyager M3x analyzer package includes the following:
-
Voyager M3x analyzer/exerciser system
-
AC power cable
-
USB cables (7 USB 2.0, 3 USB 3.2)
-
Micro to standard USB adapter
-
Mini to standard USB adapter
-
Quick Start Guide
Host Machine Requirements
Refer to the USBProtocolSuite_Readme.html file from the software installation site for the current host machine and operating system requirements.
Analyzer
The analyzer is shown in the figures below.
M3x Features
The features of the analyzer are listed below.
|
Feature |
Function |
|

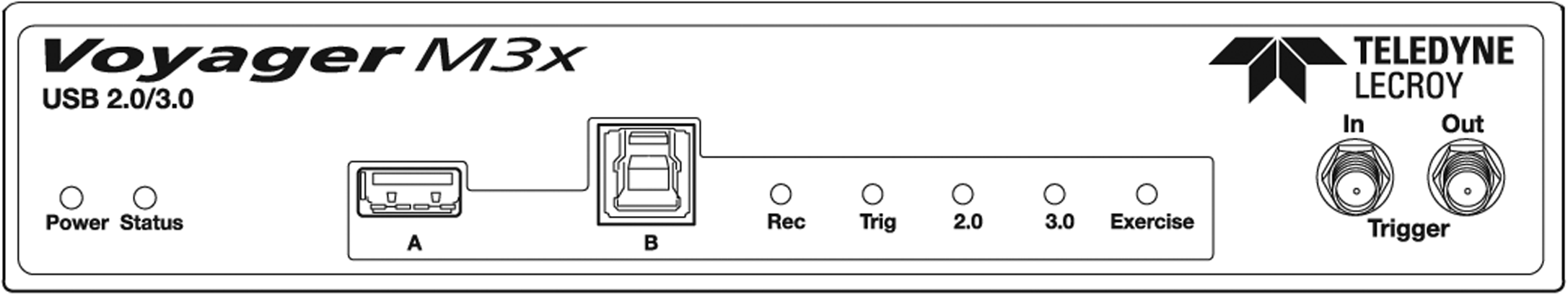

Front Panel |
|
|
Power LED |
Green if plugged in and powered on |
|
Status LED |
Blue if system successfully initializes Red if hardware failure Green while initializing |
|
USB ports (Analyzer and Exerciser) |
A (downstream) and B (upstream) |
|
Analyzer LEDs |
|
|
Rec |
Recording Green if 2.0 recording enabled or 3.2 recording enabled in Analyzer Mode |
|
Trig |
Yellow when triggered |
|
2.0 |
USB 2.0 |
|
Solid Yellow |
FS SOFs, LS EOPs, or control endpoint traffic |
|
Slow Flashing Yellow |
LS Traffic on endpoints other than 0 (resets activity timer as in 3.2) |
|
Fast Flashing Yellow |
FS Traffic on endpoints other than 0 (resets activity timer as in 3.2) |
|
Solid Green |
HS SOFs or control endpoint traffic |
|
Flashing Green |
HS traffic on endpoints other than 0 (resets activity timer as in 3.2) |
|
3.0 |
USB 3.2 SS (formerly known as 3.0) |
|
Off |
No traffic or LFPS |
|
Solid Yellow |
Only Polling LFPS |
|
Slow Flashing Yellow |
Low Power States |
|
Fast Flashing Yellow |
Symbol Traffic, Training (TS1/TS2/TSEQ) |
|
Solid Green |
Link Traffic (U0) LUP, LDN |
|
Blinking Green |
TPs and DPs (actual traffic) |
|
Exerciser |
Generating Green if generating enabled |
|
Trigger |
|
|
In |
SMA external trigger input. Note: Edge detected (Rising or Falling) Voltage required. Signal needs to be >800mV to see a logic “1”, Signal needs to be <400mV to see a logic “0”. Maximum value of the external input signal which can be input is 5 V. Minimum value is 0 V. These conditions will trigger the analyzer to start recording or will trigger the action specified in the Advanced Recording Options. |
|
Out |
SMA external trigger output. Pulse Width = 280 ns. Pulse Voltage = 3.3 Volts into 1 MegOhms. Pulse Voltage = 2.7 Volts into 50 Ohms. Pulse is positive going. |
|

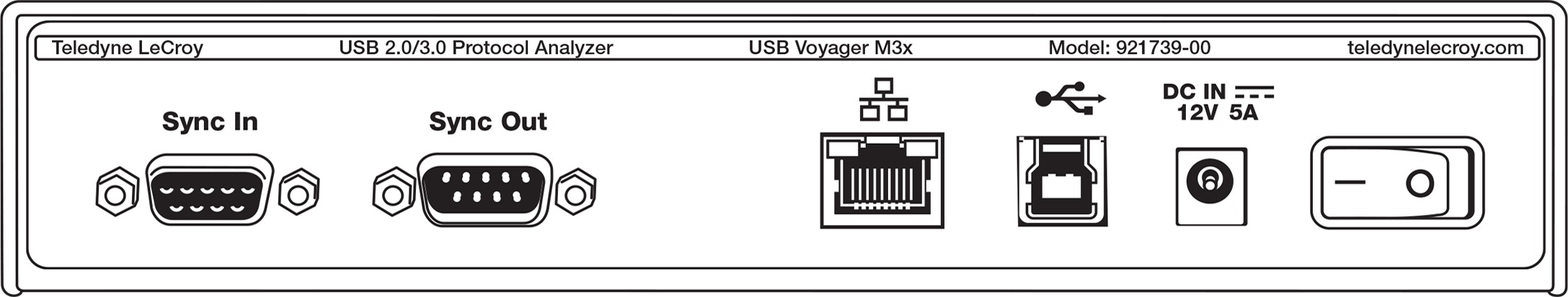

Rear Panel |
|
|
Sync In |
For use in Daisy chaining and CrossSync scenarios. |
|
Sync Out |
For use in Daisy chaining and CrossSync scenarios. |
|
Ethernet |
Gigabit Ethernet for connection to host machine. |
|
USB |
USB 3.2 Super Speed Standard B Connector to host machine. |
|
DC IN |
12V, 5A power supply connector. |
|
Power Switch |
(0/1) Off/On |
NOTE: USB 2.0 Link LEDs operate only while USB 2.0 Recording or Real- Time Statistics (RTS) is running. USB 3.2 LEDs always operate, unless USB 3.2 has been disabled in the Recording Options General Tab.
WARNING: Do not open the Voyager M3x enclosure. No operator-serviceable parts are inside. Refer servicing to Teledyne LeCroy customer care.
Specifications
The analyzer has the following specifications.
|
Tool/Utility |
Specification |
|
Power Requirements |
12 V DC, 5 amps |
|
Environmental Conditions |
|
|
Operating Temperature Storage Range Operating Humidity Operating Altitude |
0 to 55 °C (32 to 131 °F) -20 to 80 °C (-4 to 176 °F) 10 to 90%, non-condensing Up to 6560 feet (2000 meters) |
|
Probing Characteristics |
|
|
Connection |
SuperSpeed connectors: The Voyager SuperSpeed (3.2) analyzer and exerciser port differential input impedance is between 80 and 120 ohms. USB 3.2 cables High Speed USB Connectors Standard cables NOTE: The USB 2.0 exerciser port is not terminated differentially. The single ended termination is 45 ohms to ground +/- 10% or between 40.5 and 49.5 ohms. The effective differential USB 2.0 termination is between 80 and 100 ohms (90 ohms +/- 10%). |
|
Power Tracker (VBUS) |
Sampling interval: 20 µs (50 kHz) synchronized to protocol trace |
|
Switches |
Power On/Off |
|
Recording Memory Size |
1 GB or 4 GB for traffic data capture, timing, state and other data |
