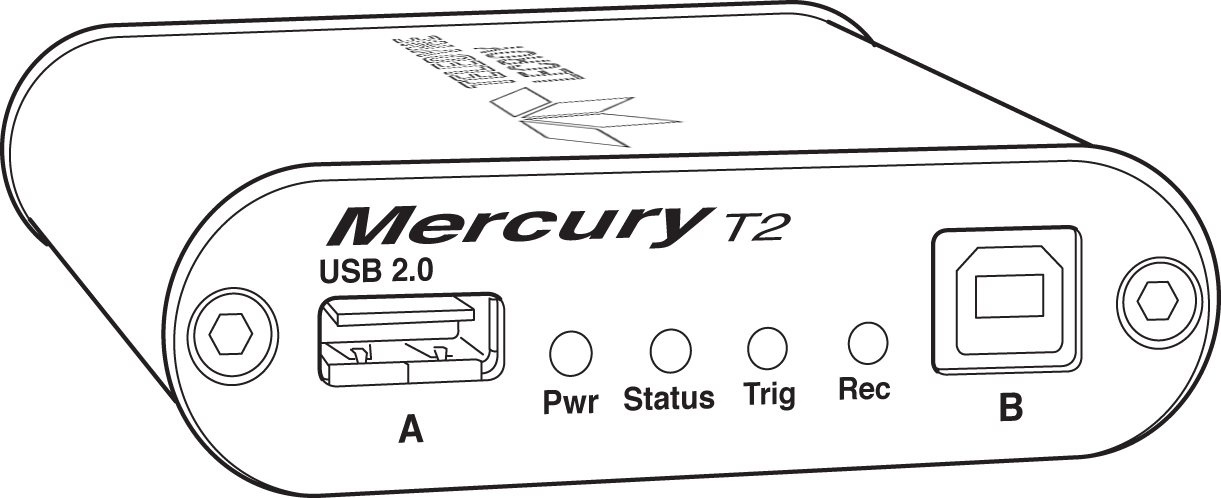

The Teledyne LeCroy Mercury T2™ USB 2.0 Protocol analyzer is a verification system for USB development and testing. It supports USB 2.0. It is designed to record USB traffic and graphically present the logical transactions and events. It connects to a laptop or desktop host machine via USB 2.0. The Mercury T2 is powered by the USB cable, so no additional power cord is needed.
The system can monitor traffic between USB 2.0 links using standard high-speed compliant cables.
The total length of the cables between the Host Under Test and the Device Under Test should be kept to less than 4 feet.
See the ReadMe file on the installation DVD for the latest information on host machine requirements and supported operating systems: https://teledynelecroy.com/sw/usb/
Features
In addition to the features it has in common with other analyzers, the Mercury T2 has the following specifications.
General
Supports the following USB speeds: 480 Mb/s, 12 Mb/s, and 1.5 Mb/s
Physical Components
-
256 MB of physical data-recording memory
-
Expansion port for optional External Trigger In/Out cable
