API Definitions: Objects and Types

The verification scripting API is made of a list of VSE objects and types as defined below.

Enumerations

Enum VSEResult

Type	Name	Result	Comments
Enum Item	NoResult	NA	Result is not set.
Enum Item	Success	NA	Successful.
Enum Item	Failure	NA	Failed.

Enum VSEPort

Type

Name

Result

Comments

Enum

Item

AllExcept (Default)

VSE will traverse all ports except those which are removed using DontSendPort ().

Enum

Item

NoneExcept

VSE won’t traverse any port except those which are added using SendPort ().

Note: To identify a single port, use positive integers starting from 1. E.g., 1 corresponds to "P1", 2 corresponds to "P2", etc.

Enum VSEItemType

Type	Name	Result	Comments
Enum Item	AllExcept (Default)	NA	VSE will traverse all events except those which are removed using DontSendItem () or DontSendPort or DontSendPort_2.
Enum Item	NoneExcept	NA	VSE won’t traverse any event except those which are added using SendItem () or SendPort or SendPort_2.
Enum Item	...	NA	See GEVSEItemType for specific items for this enumerator.

Enum TraceTraverseOrder

Type

Name

Result

Comments

Enum

Item

Linear (Default)

Traverse events in order of event’s timestamp.

Enum

Item

Transaction

Traverse based on actual transaction order. (Command, data, response).

Enum TraceTraverseType

Type

Name

Result

Comments

Enum

Item

Event (Default)

Items in each iteration consist of all packets in the event (frame).

Enum

Item

Packet

Items in each iteration only have one packet at a time. For example, for a SCSI command event, 3 items will be sent: one each for command, transport, and link.

Enum ByteOrder

Type	Name	Result	Comments
Enum Item	Unknown	NA	Item’s endianness is not defined.
Enum Item	LittleEndian	NA	Little endian item.
Enum Item	BigEndian	NA	Big (Network) endian item.

Enum BitOrder

Type

Name

Result

Comments

Enum

Item

LSBFirst

Least significant bit appears first in the item’s data.

Enum

Item

MSBFirst

Most significant bit appears first in the item’s data.

Enum GEVSEItemType: of type VSEItemType

Type	Name	Result	Comments
Enum Item	FC	NA	An FC frame.
Enum Item	Ethernet	NA	An Ethernet frame.
Enum Item	Physical	NA	A link event, such as Loss of Sync, Auto-negotiation, or Link training.
Enum Item	Primitive	NA	A primitive or ordered set.

Enum GETraceItemError

Type	Name	Result	Comments
Enum Item	DELIMITER_ERROR	NA	The frame ended without any termination block, or EOF on the line without any received SOF, or SOF on the line if the following symbol is a control symbol.
Enum Item	FRAME_LENGTH_ERROR	NA	Frames with under/over length cause this error. A frame length is the number of bytes between SOF and EOF. When this value is less than 28 bytes (24 bytes for frame Header length and 4 bytes for CRC), it is considered as under-length error. For over-length error, this value cannot exceed 2112 Bytes, excluding Optional-Extended-Header, 24 bytes of frame Header length and 4 bytes of CRC.
Enum Item	ETHERNET_CRC_ERROR	NA	Ethernet FCS Error.
Enum Item	FC_CRC_ERROR	NA	One or more CRC errors occurred with the Link Layer since the bit was last cleared. If the Transport receives an Frame with an invalid CRC signaled from the Link layer, the Transport layer signals the Link layer to negatively acknowledge frame reception by asserting error during the frame acknowledgment frame reception by asserting error during the frame acknowledgment handshake.
Enum Item	BLOCK_TYPE_ERROR	NA	Block Type Error.
Enum Item	ORDER_SET_ERROR	NA	Ordered Set Error.
Enum Item	ALIGNMENT_ERROR	NA	Align-primitives on all the 4 lanes do not occur at the same time.
Enum Item	SYNC_HEADER_ERROR	NA	If both bits in the Synchronization Header have the same value, the Transmission Word causes a code violation to be reported and be decoded as two Idle Special Functions.
Enum Item	FEC_ERROR	NA	Uncorrectable Forward Error Correction Error.
Enum Item	AUTO_NEG_FRAME_MARKER_ERROR	NA	Frame Marker Error for Auto Negotiation frames.
Enum Item	AUTO_NEG_MANCHESTER_ERROR	NA	Manchester Violation Error for Auto Negotiation frames.
Enum Item	MARKER_INTERVAL_ERROR	NA	The timing between 2 align-primitives on the same lane is not acceptable.
Enum Item	TRAINING_FRAME_MARKER_ERROR	NA	Frame Marker Error for Training Sequence frames.
Enum Item	TRAINING_MANCHESTER_ERROR	NA	Manchester Violation Error for Training Sequence frames.
Enum Item	TCP_UDP_CHECKSUM_ERROR	NA	There is a check sum error in TCP or UDP frame.
Enum Item	CHECKSUM_ERROR	NA	This error set by software if during capturing trace, user sets “Detect Checksum error” in preferences.It checks checksum for TCP/UDP/ICMP/IGMP/IP/MPA/OSPF.
Enum Item	ECN_ERROR	NA	There is an ECN error.
Enum Item	IPG_ERROR	NA	There is an IPG error.

Enum FCTraceItemError

Type	Name	Result	Comments
Enum Item	SYMBOL_VIOLATION	NA	For FC 8G traffic: Invalid 10-bit symbol. Detection of a code violation does not necessarily indicate that the transmission character in which the code violation was detected is in error. Code violations might result from a prior error that altered the running disparity of the bit stream but did not result in a detectable error at the transmission character in which the error occurred. For FC 16 and 32G traffic: 64/66b block type error.
Enum Item	DISPARITY_ERROR	NA	Incorrect disparity was detected one or more times since the last time the bit was cleared.
Enum Item	SPACING_ERROR	NA	A spacing error in which fewer than two Fill Word (Idle/ARBFF or any Unknown Primitives) are received between frames. These primitives are necessary to allow for maintaining link synchronization in the absence of other transmission words.
Enum Item	ALIGNMENT_ERROR	NA	An error in the 32-bit data alignment.
Enum Item	DELIMITER_ERROR	NA	A sequence error in the frame delimiters SOF and EOF. If two SOF delimiters or two EOF delimiters are received in a row, this error will be flagged.
Enum Item	EOF_ERROR	NA	Receiving an invalid EOF at end of frame that might include EOFa or EOFni can cause an error in EOF.
Enum Item	PRIMITIVE_ERROR	NA	This is caused by receiving an undefined primitive.
Enum Item	FRAME_LENGTH_ERROR	NA	Frames with under & over length cause error as frame length, by counting frame length between SOF and EOF. For under length it should not be less than 24+4: (24 bytes for Header Length and 4 bytes for CRC. For Over Length total length between SOF and EOF minus Optimal-ExtendedHeader (if exist), minus Frame-Header-Length (24 Bytes), minus CRC-Length (4 Byte) should not be exceed more than 2112 Bytes.
Enum Item	CRC_ERROR	NA	One or more CRC errors occurred with the Link Layer since the bit was last cleared. If the Transport receives an Frame with an invalid CRC signaled from the Link layer, the Transport layer signals the Link layer to negatively acknowledge frame reception by asserting error during the frame acknowledgment handshake.
Enum Item	SYNC_HEADER_ERROR	NA	If both bits in the Synchronization Header have the same value, the Transmission Word causes a code violation to be reported and is decoded as two Idle Special Functions.
Enum Item	FEC_PARITY_ERROR	NA	FEC Parity Error.
Enum Item	ILLEGAL_PRIMITIVE_ERROR	NA	On 16G traffic ARB (ARBff, ARBval, and ARByx) primitives are illegal and vendor specific BB_SCs and BB_SCr primitives are illegal on all speeds.
Enum Item	TRAINING_FRAME_MARKER_ERROR	NA	Frame Marker Error for Training Sequence frames.
Enum Item	TRAINING_MANCHESTER_ERROR	NA	Manchester Violation Error for Training Sequence frames.

Enum GELogicalField

	Name	Result	Comments
Enum Item	START_TIME	Integer 64	The start timestamp of the item in nanoseconds.
Enum Item	DURATION_TIME	Integer 64	The time duration of the item in nanoseconds.
Enum Item	ANALYZER_SPEED	String	The bit rate of the item. (1G, 2G, 4G, 8G, 10G, 16G, 25G, 32G, 40G, 50G, 100G).
Enum Item	PORT_NO	String	The alias of the port on which the item was captured. By default, "P1", "P2", etc.
Enum Item	PORT_NO_2	String	This logical field returns port alias name string according to exact port label on the board. It means for QSFP ports, it returns “P9”, “P10”. Actually, string value of this field is same as “Port No” column in viewer.
Enum Item	CURRENT_STATE	String	The analyzer sequencer state number at the time the item was captured.
Enum Item	ETHERNET_TAG	String	For Ethernet frame items, the VLAN tag name(s), if any. If a frame has multiple tags, they will be concatenated together like "Tag1 - Tag2 - Tag3 ....". Possible tag names are: "ISL", "VXLAN", "GRE", "NVGRE", or any 802.3 tag name.
Enum Item	DATA_LENGTH	Integer 32	For frame items, the length (in bytes) of the data payload.
Enum Item	PROTOCOL_TYPE	String	"Ethernet" or "FC".
Enum Item	PACKET_LENGTH	Integer 32	The length in bytes of the entire item. The value is formatted as a string like "<length> Bytes".
Enum Item	LANE_NO	Integer 32	For link training frames at 40/50/100 G, the physical lane on which it was captured.
Enum Item	FEC_STATUS	String	The FEC Mode of the link. ("", "BASE-R FEC", or "Reed-Solomon FEC")
Enum Item	COUNT	Integer 32	For items with a repeat count (AN, Training, Ordered Sets), the number of instances captured.
Enum Item	JAMMER_PORT_NAME	String	For traces from a jammer configuration, an indication of whether item was captured before/ after jammer. ("After Jam" or "Before Jam").
Enum Item	LINK_FUNCTION_NAME	String	A decoded abstract of the item, depending on its type. It corresponds to the value shown in the Frame column of the application's Spreadsheet View.
Enum Item	TRANSPORT_FUNCTION_NAME	String	A decoded abstract of the item, depending on its type. It corresponds to the value shown in the Transport Function Name column of the application's Spreadsheet View.
Enum Item	RESPONSE_TIME	Integer 32	Response time of an exchange in nanoseconds. This value is valid for first frame of an exchange, for other frame of exchange it is not applicable.
Enum Item	LATENCY	Integer 32	Latency time of an exchange in nanoseconds. This value is valid for first frame of an exchange, for other frame of exchange it is not applicable.
Enum Item	PENDING_EXCHANGES	Integer 32	Number of pending exchanges. This value is valid for first and last frame of exchange, for other frames of exchange it is not applicable.
Enum Item	EXCHANGE_STATUS	String	Status of an exchange as below: “Success;” “Fail;” “Incomplete;”
Enum	IPG_DURATION	Integer 32	Interpacket Gap time in nanoseconds.
Enum Item	TCP_PAYLOAD_LENGTH	Integer 32	TCP Payload length
Enum Item	PAYLOAD_LENGTH	Integer 32	Higher layer payload byte length
Enum Item	TIME_DELTA	Integer 32	Difference between current record start time and previous visible record start time shown in spreadsheet/exchange view
Enum Item	LATENCY	Integer 32	Duration between the time command is sent from the initiator to the time the first response is sent from target
Enum Item	THROUGHPUT	Integer 32	Total size of command payload sent/received over duration starting from the time the command is sent from initiator to the time the last response is sent from target or initiator
Enum Item	PRESET_STATUS	String	Initial condition status for Ethernet link training record
Enum Item	MARKERS_COUNT	Integer 32	Number of Alignment Markers sent along with the frame record
Enum Item	PROTOCOL_ERROR	String	Analyzer/Software detected protocol errors
Enum Item	TLS_FUNCTION_NAME	String	TLS Packet type
Enum Item	FC_SP_VERSION	Integer 32	Fibre Channel (FC) - Security Protocols (SP) version

Enum ExchangeState

Type	Name	Result	Comments
Enum Item	Start	None	If item is first frame of exchange, this value returned by ExchangeStatus property.
Enum Item	End	None	If item is last frame of exchange, this value returned by ExchangeStatus property.
Enum Item	Mid	None	If item is middle frame of exchange, this value returned by ExchangeStatus property.
Enum Item	NA	None	If traverse order is linear, NA returned by ExchangeStatus for all items.

Global Objects

Output

Type	Name	Result	Comments
R/W Property	Result	VSEResult	Set by user to indicate the result of VSE.
Function	SetProgress(min, max, pos)	None	Set minimum, maximum and current position of progress.
Function	AppendLog(message)	None	Append message to the VSE log control.
Function	AppendHTMLLog(html_message)	None	Append HTML message to the VSE log control. Note: This function won’t work if AppendLog() is called in the same script. Note: AppendHTMLLog does not support complex rich text rendering with tables and floats. It does support limited paragraph-based formatting that you might need in a log viewer.
Function	ClearLog()	None	Clear the log if applicable. Has no effect on log file.

Trace

Type	Name	Result	Comments
R/O Property	Name	String	Trace file path name.
R/O Property	ItemCount	Integer	Number of items (Links) within trace.
R/O Property	TriggerIndex	Integer	Trace’s trigger index (Link index). The returned index is 1-based.
R/O Property	TriggerTimeStamp	Double	Double precision floating point seconds since start to trace’s trigger.
R/O Property	PortList	List	Returns list of existing ports in the trace. Here is port mapping: P1: 1 P2: 2 …… P8 : 8 P9 : 1 P10: 2 When there are more than one board, port index increased sequentially for second board.
R/O Property	PortList_2	List of List	Returns list of pairs. Each pair specifies board index (one base) and port label on the board.
Function	ProcessVSE(config, on_item)	None	This function will call on_item function for each item in the trace according to the config parameter (See CVSEConfig). It will continue until there is no item remaining or on_item returns False. on_item is a function with signature Bool(CVSEItem).
Function	GetItemByIndex(event_number)	Item	Retrieves an Item specified by event_number (Link index). event_number is 1-based.
Function	GetItemByPacketKey(packet_key)	Item	Retrieves an Item specified by packet_key.
Function	SetBookmark(packet_key, name, desc)	None	Creates a bookmark at specified packet key.
Function	RemoveAllBookmarks	None	Remove all bookmarks from trace.
Function	RemoveBookmark (packet_key)	Boolean	Remove bookmark from given packet_key.
Function	GetAllBookmarks	CTraceBookmark[]	Retrieves list of all bookmarks in trace. See Class CPacketKey table.

Classes

Class CPacketKey

Type	Name	Result	Comments
R/O Property	IsValid	Boolean	Indicates whether the packet key is valid or not.
R/W Property	Layer	Integer	Layer specifies layer ID of packet. You can see the enumeration in the Layer ID table. This enumeration is the type for the Layer member of CPacketKey.
R/W Property	IndexInLayer	Integer	Index of the packet key in its layer. It is a 1-based index.
Function	Constructor(layer, index)	CPacketKey	Construct a packet key with specified layer and index. Index is 1-based.
Function	Reset()	None	Reset the packet key to invalid state.

Class CVSEConfig

Type	Name	Result	Comments
R/W Property	TraverseOrder	TraverseOrder	Specifies the order in which VSE should send events to script. See below.
R/W Property	TraverseType	TraverseType	Specifies the type in which VSE should send events to script. See below.
R/W Property	AutoProgress	Boolean	Whether progress should be handled automatically by VSE engine or not.
R/W Property	SkipUnassociatedTraffic	Boolean	It is applicable only in Transaction mode. If it is TRUE, VSE skips un associated traffic during navigation. By default, it is TRUE in Transaction mode.
R/W Property	SkipNoneFrames	Boolean	It is applicable in both Linear and Transaction modes. If it is TRUE, VSE skips None frame events during navigating events. By default, it is FALSE in Transaction mode.
Function	SendPort(port)	None	port is of type VSEPort. See VSEPort enumerator.
Function	SendPort_2(boardindex, portindex)	None	Boardindex is 1 based integer value which specifies board index of board. Portindex is port label that specified on board.
Function	DontSendPort(port)	None	port is of type VSEPort. See VSEPort enumerator.
Function	DontSendPort_2(boardindex, portindex)	None	Boardindex is 1 based integer value which specifies board index of board. Portindex is port label that specified on board.
Function	SendItem(item_type)	None	item_type is of type VSEItemType. See VSEItemType enumerator.
Function	DontSendItem(item_type)	None	item_type is of type VSEItemType. See VSEItemType enumerator.

Class CTraceItem

Type	Name	Result	Comments
Index	[]	CTraceItem	For given item_path string, it returns the corresponding TraceItem. See item_path below for more information.
R/O Property	EventNumber	Integer	Event number for this item (Link index). It is 1-based.
R/O Property	PacketKeys	PacketKey[]	Array of packet keys which this item contains.
R/O Property	TimeStamp	Double	Double precision floating point seconds since start which this item occurred.
R/O Property	HasError	Bool	Check to see if this item has any errors.
R/O Property	ErrorList	TraceItemError[]	List of all errors for this item. See TraceItemError for more information.
R/O Property	StartBit	Integer	Starting bit of this item within the its packet.
R/O Property	Length	Integer	Length of this item in bits.
R/O Property	ErrorMessage	String	Error message of this item.
R/O Property	Data	TraceItemData	Retrieves the data of this item. See TraceItemData for more information.
R/O Property	Data2	TraceItemData	Retrieves the data of this item. It returns “None” if field is empty.
R/O Property	DecodedData	String	Retrieves decoded string of current item’s data.
R/O Property	Name	String	This item’s name.
R/O Property	Abbreviation	String	This item’s abbreviation, if available.
R/O Property	Description	String	Description string for this item.
R/O Property	ByteOrder	ByteOrder	See ByteOrder for more information
R/O Property	BitOrder	BitOrder	See BitOrder for more information
R/O Property	ExchangeStatus	ExchangeState	See Enum ExchangeState for more information.
R/O Property	PortNo	Integer	Retrieves one based port number of current item.
R/O Property	PortNo_2	List	Retrieves 1 based port number of current item in a list. First item in list specifies board index, and second item specifies port number which is same as port label on the board.
R/O Property	PortAlias	String	Retrieves port alias name of current item.

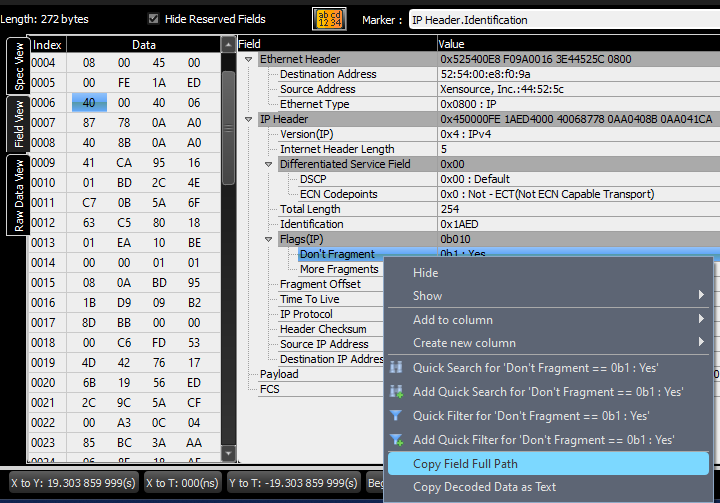

R/O Property	ItemPath	item_path	Retrieves path of item if item is a field.
R/O Property	ItemPathLongName	item_path	Retrieves path of item if item is a field. The path contains long(full) name of fields.
Function	GetItemByPath(item_path)	CTraceItem	Retrieves an item uniquely specified by item_path argument. item_path is of type String and is described below.
Function	GetItemByName(item_name)	CTraceItem	Retrieves the first sub item of this item with name equal to item_name parameter.
Function	GetAllItemsByName(item_name)	CTraceItem[]	Retrieves a list of all sub item of this item with name equal to item_name parameter. If user passes “”, it returns all items (fields) of event. You can also specify a field name with , like TCP Header.*, in this case it returns all subfields of TCP Header field.
Function	GetMetaFieldData(logical_file_id)	LogicalField	Retrieves TraceItemData of the logical field under this item specified by logical_file_id. See GELogicalField for more information.
Function	GetMetaFieldDataList(logical_file_id)	LogicalField	Retrieves list of TraceItemData of the logical field under this item specified by logical_file_id. See GELogicalField for more information. This function is applicable for Multi PDU protocols like iSCSI, NVMe and SMP. When a frame contains multi command PDU, you can get value of logical fields that are related to each of PDUs like RESPONSE_TIME and PENDING_EXCHANGES.
Function	SetBookmark(name, desc)	None	Creates bookmark at this item
Function	GetBookmark()	CTraceBookmark	Retrieves bookmark from this item. See Class CTraceBookmark
Function	GetColumnData(Column_Name)	String	Retrieves the column value of the current item based on the Spreadsheet view Column Name.

Layer ID

The Layer ID enumeration is the type for the Layer member of CPacketKey.

Type	Name	Result	Comments
Enum Item	LAYER_LINK	Integer 32	Specifies Link layer
Enum Item	LAYER_SEQUENCE	Integer 32	Specifies transport layer
Enum Item	LAYER_SCSI_CMD	Integer 32	Specifies SCSI command layer
Enum Item	LAYER_LS_CMD	Integer 32	Specifies ELS command layer
Enum Item	LAYER_SW_CMD	Integer 32	Specifies switch command layer
Enum Item	LAYER_GS_CMD	Integer 32	Specifies GS command layer
Enum Item	LAYER_FICON_CMD	Integer 32	Specifies FICON command layer
Enum Item	LAYER_NVME_CMD	Integer 32	Specifies NVMe layer
Enum Item	LAYER_MAD_CMD	Integer 32	Specifies MAD layer
Enum Item	LAYER_ISCSI_CMD	Integer 32	Specifies iSCSI layer
Enum Item	LAYER_NVME_LS_CMD	Integer 32	Specifies NVMe Link Service layer
Enum Item	LAYER_SMB_CMD	Integer 32	Specifies SMB layer
Enum Item	LAYER_MPA_CMD	Integer 32	Specifies MPA layer
Enum Item	LAYER_IWARP_CMD	Integer 32	Specifies iWarp layer

Class CTraceBookmark

Type	Name	Result	Comments
R/W Property	Name	String	Specifies name of bookmark.
R/W Property	Description	String	Specifies description of bookmark.
R/W Property	PacketKey	CPacketKey	Specifies packet key of packet.

Types

Type TraceItemData

TraceItemData is a variant type consists of either Integer(8/16/32/64), String, floating point or TraceItemBytes. Actual type of the variant will be decided by engine at runtime depending on the operation which is being done.

Type TraceItemBytes

Array of bytes. Each byte is accessible through indexing [] operator.

item_path string

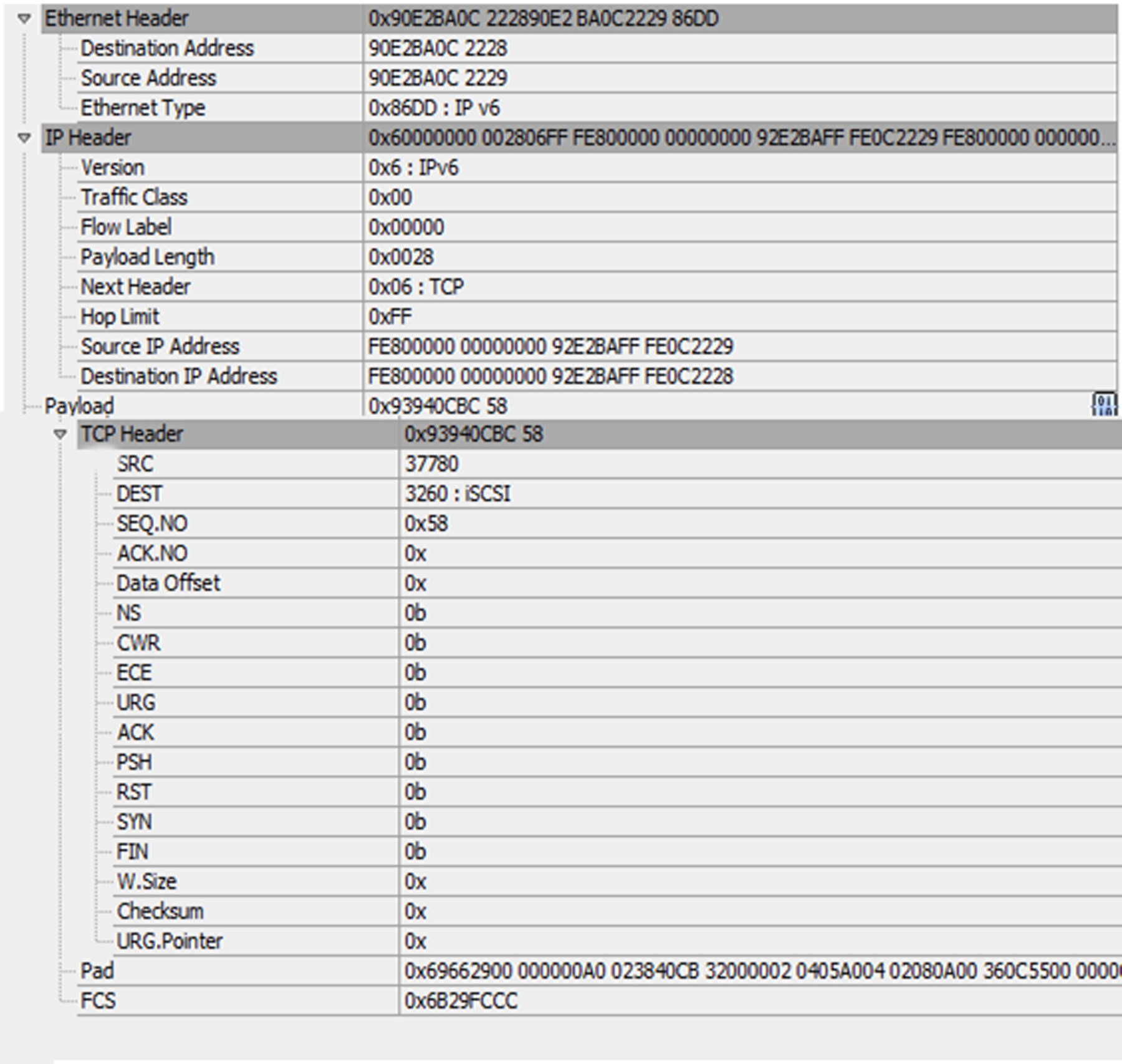

A string that can uniquely identify a field within an item. This string consists of field_names separated by a period. If a field is repeated in a given context, it is going to be treated as an array. Thus the user should specify which index he/she wants by specifying the index number in the square brackets. For example, consider the following packet which is presented by merging TCP header directly into the Ethernet payload:

Here is a list of sample itempaths in the above example:

"Payload.TCP Header.SRC"
"Ethernet Header.Source Address"

Note: If there were two consequent TCP Headers in the above example, the first item would be: "Payload.TCP Header[0].SRC"

Period and square bracket characters in the field names can be represented by using escape sequences. An escape sequence is initiated with back-slash character. Character next to back-slash is considered as escaped character. Currently supported escape sequences are "\\", "\.", "\[", abd "\]" without quotation marks. Using any escaped characters other than those mentioned will result in an error.

There are shortcuts for referencing field names, depending on which pane of the Frame Inspector view they are displayed in:

Pane	Shortcut
First Pane	“<Field Name>”
Second Pane	“.<Field Name>”
Third Pane	“..<Field Name>”

Note: You can copy an item_path string from Net Protocol Suite. To do so, right-click on any field in the Inspector View and click “Copy Field Full Path” as shown below. In this example, “IP Header.Flags(IP).Don't Fragment” is copied to the clipboard and can be used in VSE.
