Mercury T2C Specifications

The LeCroy USB Mercury T2C™ USB 2.0 and Power Delivery protocol analyzer is a verification system for USB development and testing. It supports USB 2.0. It is designed to record USB traffic and graphically present the logical transactions and events. It connects to a laptop or desktop host machine via USB 2.0. The Mercury T2C is powered by the USB Type-C cable, so no additional power cord is needed.

Components

The Teledyne LeCroy Mercury T2C analyzer package includes the following:

  • One Teledyne LeCroy USB Mercury T2C analyzer

  • Six USB cables: 2x A-C, C-B, C-uB, C-C, C-A receptacle

  • Quick Start Guide

Front Panel

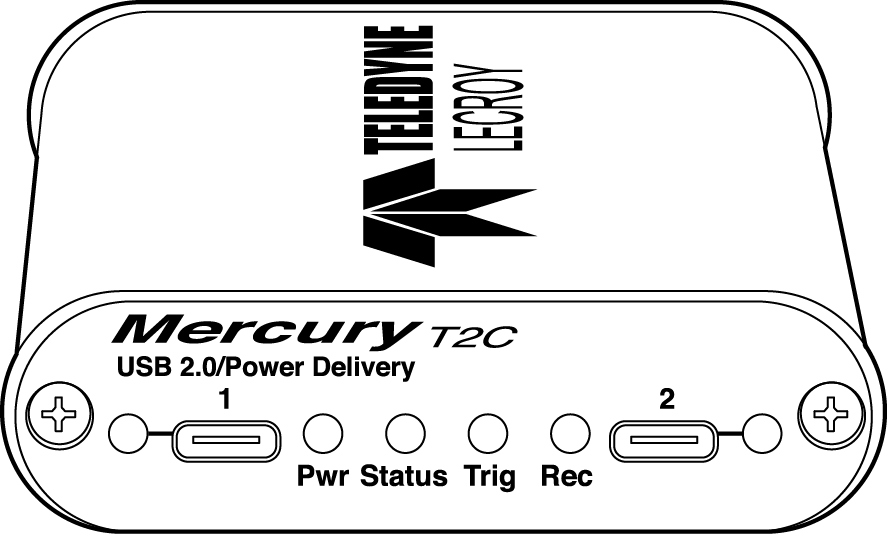

Mercury T2C Front Panel

The front panel has the following indicators and connectors.

Indicator/Connector

Description

Connector 1 LED

Green – Good

Red – Flip it over!

Solid Yellow – Special Condition.

Analyzer Connector 1 (downstream)

Connects to Device under test (UFP)

Power LED

Green when on

Status LED

Blue if system successfully initializes.

Red while booting. If red for more than a minute, hardware failure.

Green while initializing.

Analyzer LEDs

Trig – Trigger

Rec – Recording

Green when triggering

Red when recording is enabled

Analyzer Connector 2 (upstream)

Connects to Host under test (DFP)

Connector 2 LED

Green – Good

Red – Flip it over

Solid Yellow – Special Condition

Rear Panel

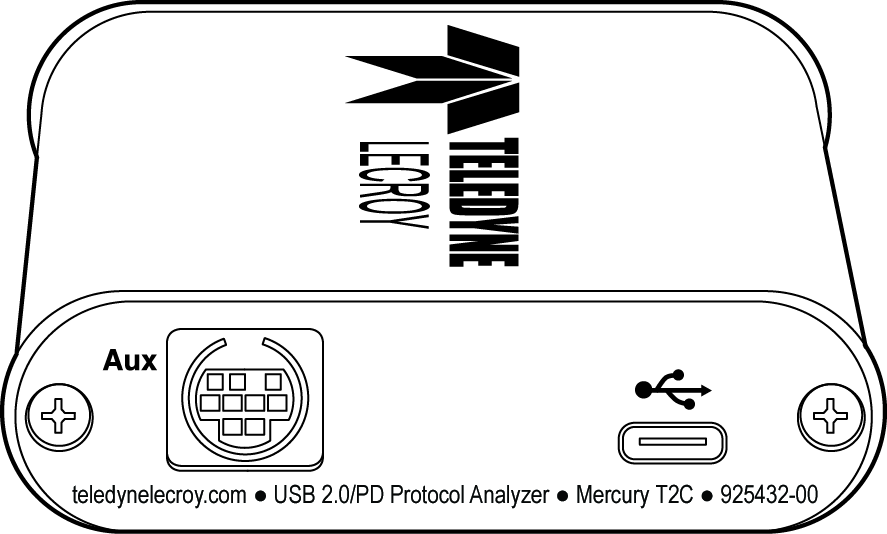

Mercury T2C Rear Panel

The rear panel has the following indicators and connectors.

Indicator/Connector

Description

USB

Type C connector for connection to host machine

Aux

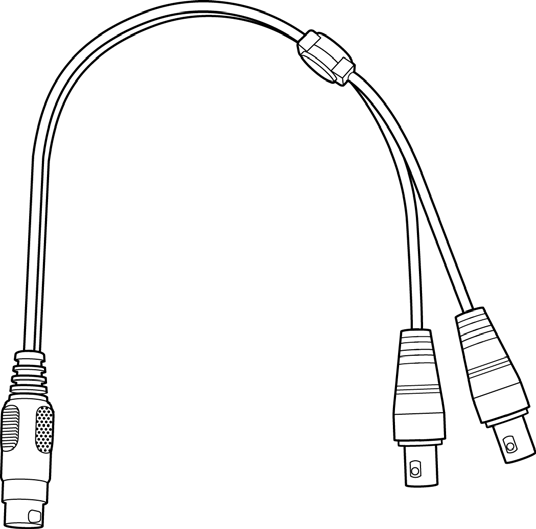

9-pin Mini DIN connector, used for External Trigger In and Out BNC connections (Cable sold separately, part # AC032XXA-X)



Trigger In

Bayonet connector external trigger input.

NOTE: Edge detected (Rising or Falling) Voltage required. Signal needs to be > 800mV to see a logic “1”, Signal needs to be < 400mV to see a logic “0”. Maximum value of the external input signal which can be input is 5 V. Minimum value is 0 V.

Trigger Out

Bayonet connector external trigger output.

Pulse Width = 280 ns. Pulse Voltage = 3.3 Volts into 1 MegOhms. Pulse Voltage = 2.7 Volts into 50 Ohms. Pulse is positive going.

WARNING: Do not open the enclosure. No operator-serviceable parts are inside. Refer servicing to Teledyne LeCroy Customer Care.

Specifications

The analyzer has the following specifications.

Tool/Utility

Specification

Power Requirements

Powered by USB Cable. 5V, 0.5 A

Environmental Conditions

Operating Temperature

Storage Range

Operating Humidity

Operating Altitude

0 to 50 °C (32 to 122 °F)

-20 to 80 °C (-4 to 176 °F)

10 to 90%, non-condensing

Up to 6560 feet (2000 meters)

Probing Characteristics

Connection

USB 2.0 USB Type-C™ connector cables

High Speed USB Connectors

Standard cables

Switches

Power On/Off

Recording Memory Size

256 MB for traffic data capture, timing, state and other data

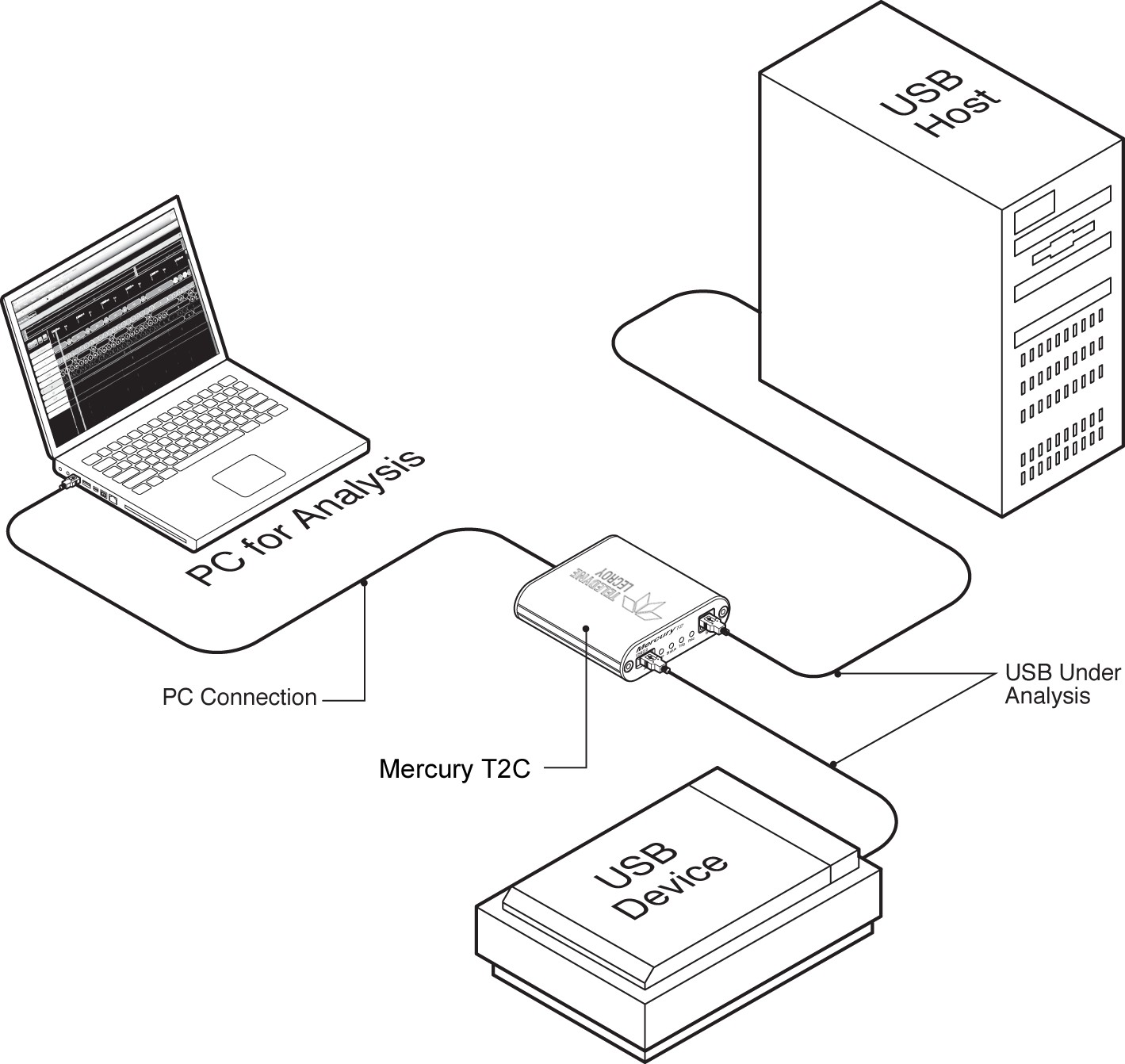

Mercury T2C System Setup

Mercury T2C is configured and controlled through a host machine USB port.

Mercury T2C Setup

The Device (UFP) should be reconnected to the Connector 1 (Left side), whereas the Host (DFP) should be connected to Connector 2 (Right side).

  1. The device and host should be connected to the cables before inserting into the analyzer, so the orientation and UFP vs DFP aspect can be determined.

  2. The cables can then be connected to the Mercury T2C.

  3. If the LED associated with the Connector shows Red, you need to flip the connector over so it shows Green. The will enable the analyzer to connect all the other signals in a 3.2 cable correctly, allowing the other SS, SS+, or Alternate Modes to work without interruption.
